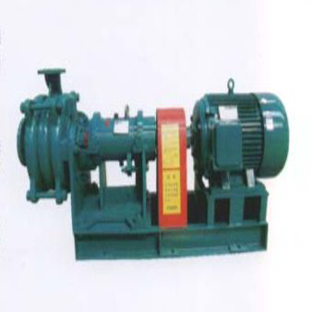

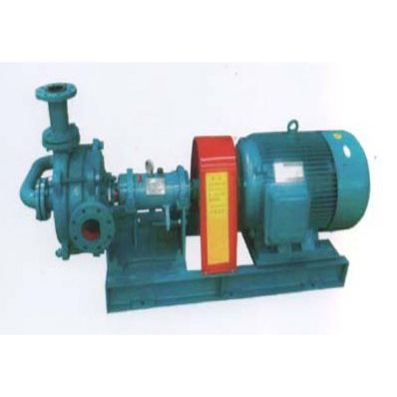

40SYE160-45 Pressure filtration feed pump
Shijiazhuang Heavy Pump Company Limited 3
Summary Description
1)Capacity: 10—55 m3/h
2)Head: 20—160 m
3)Material: Cr26
4)Allowable mating Mac power: 45 kw
$2328.00
PRODUCT DETAILS
| Product description |
SYE type pressure filter feeding pump is a new generation of pressure filter pump developed by our company on the basis of SYA. The pump has high pressure, high wear resistance, simple maintenance, long service life, is an ideal alternative to screw pump, plunger pump products, widely used in urban sludge treatment, printing and dyeing, chemical industry, pharmaceutical industry sewage sludge treatment, drilling mud dry drainage, river dredging and other industries.
| pump parts |
| Item | Prod Code | Capacity(m³/h) | Head （m） |
Speed(rpm) | Max Power(KW) |
| 1 | 40SYE100-30 | 10-40 | 20-100 | 2900 | 30 |
| 2 | 40SYE120-37 | 10-45 | 20-120 | 2900 | 37 |
| 3 | 40SYE160-45 | 10-55 | 20-160 | 2900 | 45 |
| 4 | 50SYE100-37 |
30-80 |
30-100 |
1480 |
37 |
| 5 | 50SYE120-45 |
30-100 |
30-120 |
1480 |
45 |
| 6 | 65SYE100-55 |
30-120 |
30-100 |
1480 |
55 |
| 7 | 65SYE120-75 |
30-140 |
30-120 |
1480 |
75 |
| 8 | 100SYE100-90 |
30-180 |
35-100 |
1480 |
90 |
| 9 | 100SYE120-110 |
30-220 |
35-120 |
1480 |
110 |
| Details Images |
| Metal Chromium Alloy pump parts |
High-chromium wear-resistant cast iron KmTBCr26, High Chrome 26% has high hardness and heat treatment hardness of HRC58~62. It has good abrasion resistance. As for alkaline mixed liquid, it has good corrosion resistance and can be used in strong abrasion conditions. The casting process of high chromium cast iron is difficult and difficult to process. However, it has a long service life and moderate price, and is the most common material used for slurry pump.
This alloy provides a great balance of hardness and toughness, making it effective to pump high abrasion and corrosive liquid.
It provides modest corrosion resistance pump components such as the impellers, casings, volute liners and throatbushes
Material Type: Erosion resistant white iron
 |
 |
| Company Profile |
 |
 |
 |
 |
Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.
| Heavy pump products in five series: |
| 1)Heavy horizontal slurry pump H series |
| 2)Heavy vertical slurry pump SP ( semi-submersible pump) |
| 3)Heavy dredge pump G series |
| 4)Heavy gravel pump T series |
| 5)Heavy submersible pump |
| Heavy Slurry Pump Material: |
| a)Impeller: high-chromium alloy or rubber |
| b)Volute liner: high-chromium alloy |
| c)Shaft: 45# steel |
| d)Shaft sleeve: ductile casting |
| e)Frame plate: casting |
| f)Packing seal: Mechanical seal or Gland seal. |
| We can choose the pump material according to pump working condition. Heavy pump products advantage: |
| 1)Anti-abraisive metal |
| 2)Module design which makes the spareparts can be changed freely |
| 3)Designed and built for long time with low maintenance |
| Heavy Pump Company to the Customers: |
| 1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it. |
| 2)Fast delivery at your requirement. |
| Production workshop corner |
 |
| Enterprise production certificate |
| Customer Visit Photos |
| Packaging Transport Photos |
| FAQ |
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
