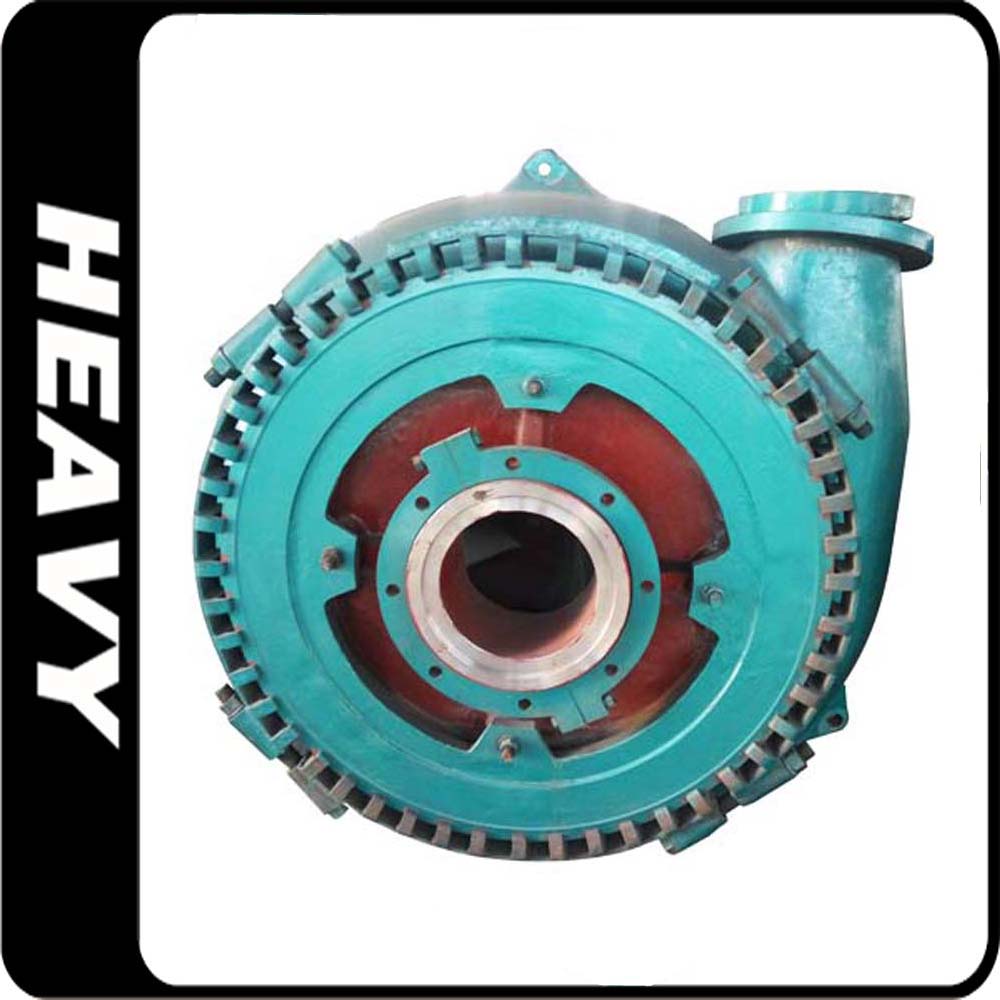

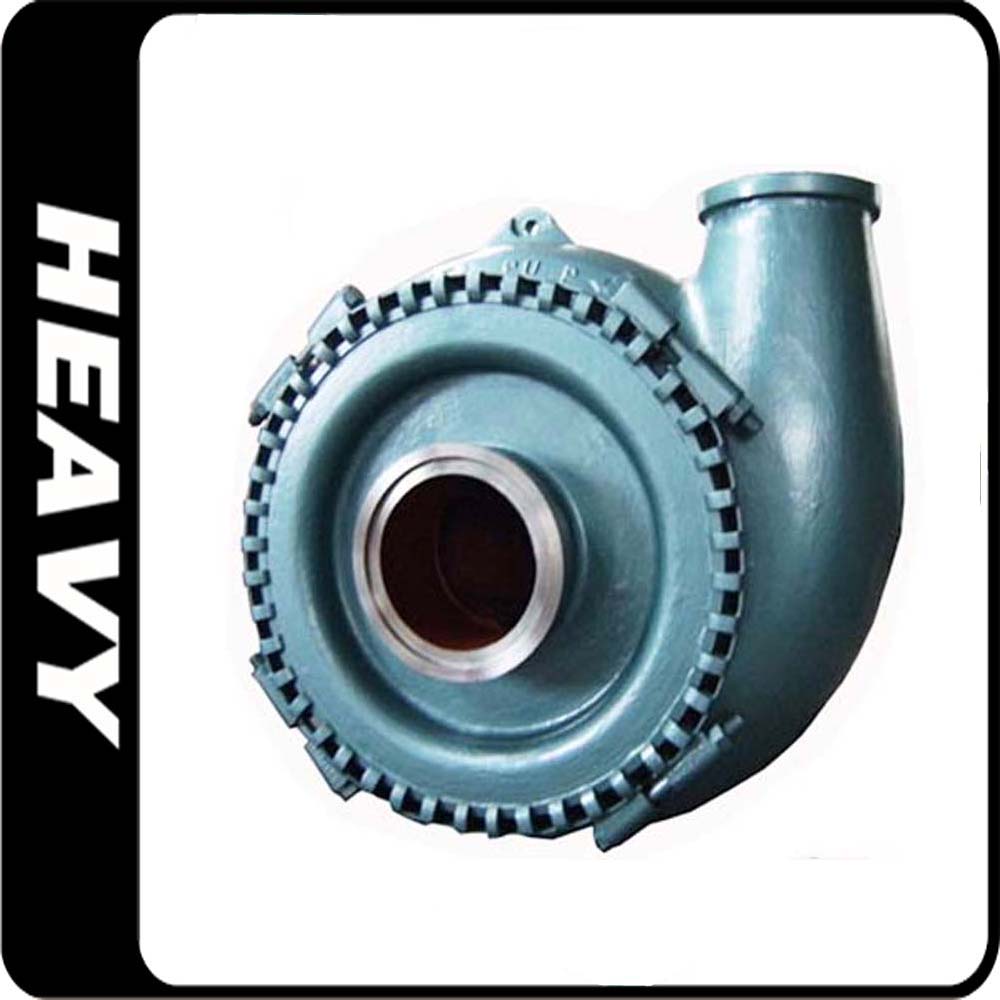

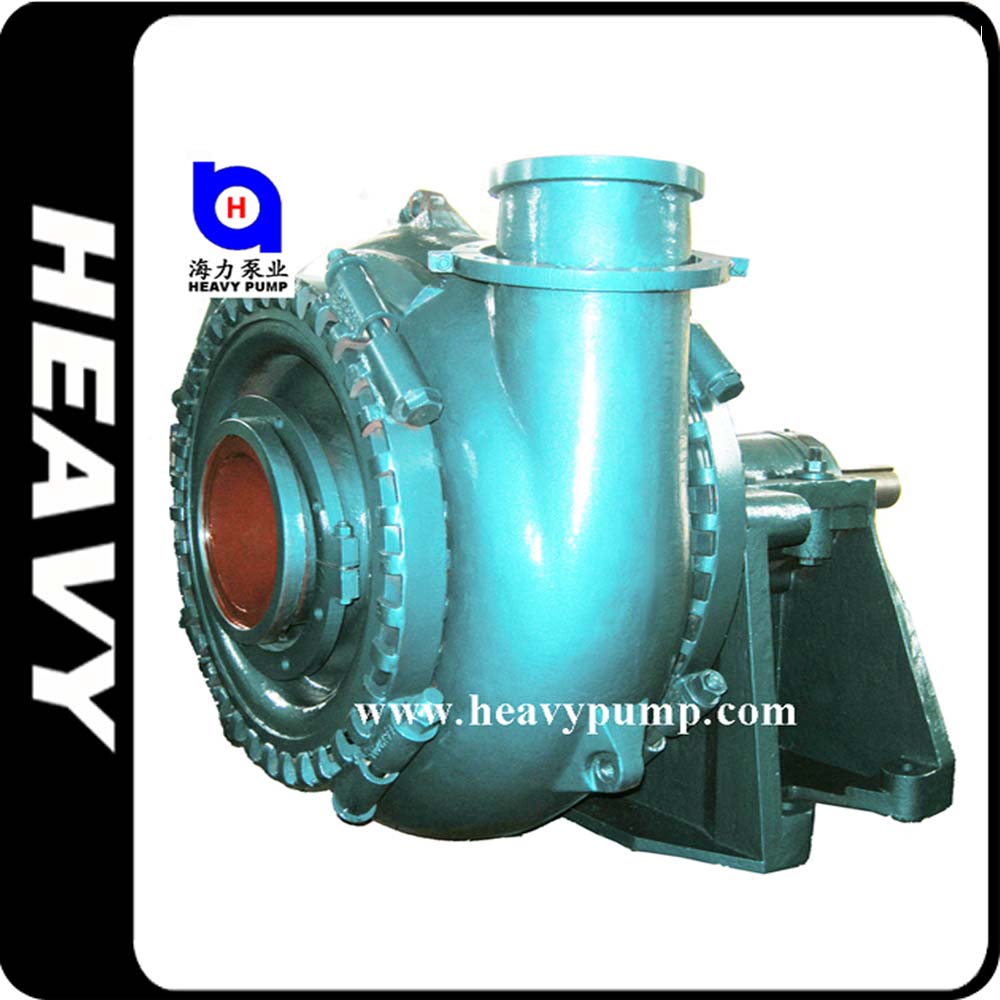

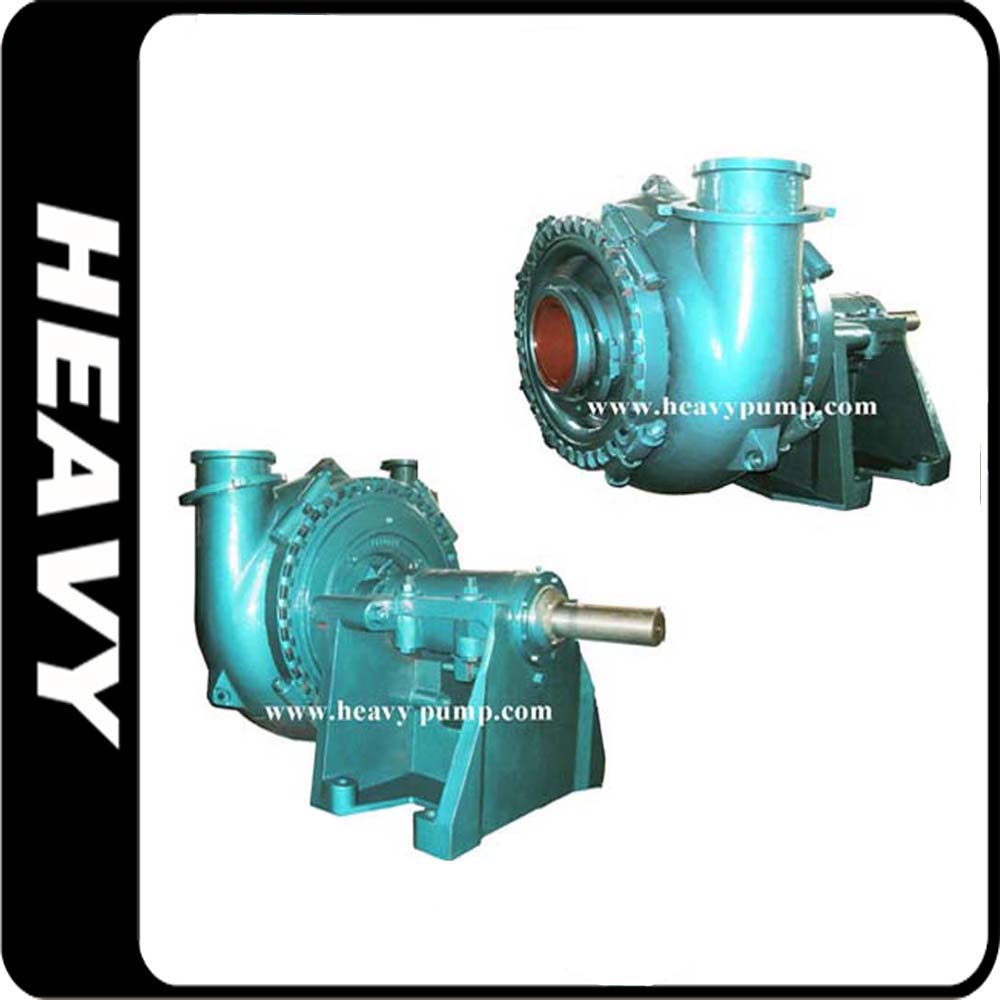

12-10 G-GH Sand pump
Shijiazhuang Heavy Pump Company Limited 4
Summary Description
1)Capacity: 600—2200 m3/h
2)Head: 28—78 m
3)Flow parts materials: Cr26 alloy
$23400.00
PRODUCT DETAILS
| Product Description |
Sand pump Features
1. Advanced hydraulic model, CAD 3D design, high efficiency and obvious energy-saving
2. Large dredging depth, high density of dredging mud, good NPSH and strong suction lift ability
3. Strong through-put. The pump can persistently discharge gravel, high plastic soil lump, etc.
4. The pump can be directly matched with either motor or diesel engine
5. Wide application. It can be used in various kinds of soil quality. Generally, the pump is matched with an impeller with 3 or 5 pieces of vane. At the same time, the impellers can be provided with various diameters and vane types to suit kinds of working condition.
6. Little hydraulic loss, high efficiency and low oil-consumption
7. Little volume, light weight
8. Steady operating, little vibration, low noise
9. Simple & reliable construction, easily disassembly & assembly, convenient maintains
10. Reliable sealing without leakage
11. Long operating life of parts
12. Long operating life of parts
| Application area |
| Structural Map |
| Work environment |
| Product Paramenters |
| Performance |
||||||||
| Pump Model |
Capacity(m³/h) | Head （m） | Speed(rpm) | Max.Eff(%) | NPSH(m) | lnlet Diameter(mm) | Outlet Diameter(mm) | Max.Diameter of Flowd Partice(mm) |
| 6-4 D-G | 36～252 | 3.5～51 | 600～1400 | 30～50 | 2.5～3.5 |
150 | 100 | 82 |
| 8-6 E-G | 137～580 | 10～48 | 800～1400 | 50～60 | 3～4.5 |
200 | 150 | 127 |
| 10-8 S-G | 220～1000 | 13～50 | 500～1000 | 45～65 | 3～7.5 |
250 | 200 | 178 |
| 10-8 F-G |
220～1000 | 13～50 | 500～1000 | 45～65 | 3～7.5 |
250 | 200 | 178 |
| 12-10 F-G |
360～1520 | 11～58 | 400～850 | 50～70 | 2～4.5 |
300 | 250 | 220 |
| 12-10 G-G |
360～1520 | 11～58 | 400～850 | 50～70 | 2～4.5 |
300 | 250 | 220 |
| 14-12 G-G |
200～3100 | 6～66 | 300～700 | 60～68 | 2～8 |
350 | 300 | 241 |
| 18-16 G-G |
860～3800 | 9～48 | 250～500 | 60～72 | 3～6 |
450 | 400 | 254 |
| 18-16 T-G |
860～3800 |
9～48 |
250～500 |
60～72 |
3～6 |
450 | 400 | 254 |
| 12-10 G-GH |
600～2200 |
28～78 |
350～700 |
60～72 |
2～8 |
300 | 250 | 210 |
| 10-8 S-GH |
400～1290 |
18～80 |
500～950 |
60～72 |
2～5 |
250 | 200 | 180 |
| Driving Method |
 |
| Different materials available |
| Company Profile |
Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.
| Heavy pump products in five series: | Heavy pump products advantage: |
| 1)Heavy horizontal slurry pump H series. | 1)Anti-abraisive metal. |
| 2)Heavy vertical slurry pump SP ( semi-submersible pump) | 2)Module design which makes the spareparts can be changed freely. |
| 3)Heavy dredge pump G series | 3)Designed and built for long time with low maintenance. |
| 4)Heavy gravel pump T series | Heavy Pump Company to the Customers: |
| 5)Heavy submersible pump | 1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it. |
| Heavy Slurry Pump Material: | 2)Fast delivery at your requirement. |
| a)Impeller: high-chromium alloy or rubber. | |
| b)Volute liner: high-chromium alloy. | |
| c)Shaft: 45# steel. | |
| d)Shaft sleeve: ductile casting. | |
| e)Frame plate: casting. |
|
| f)Packing seal: Mechanical seal or Gland seal. |
|
| We can choose the pump material according to pump working condition. |
| Production workshop corner |
| Use of Site |
| Enterprise production certificate |
| Customer Visit Photos |
| Packaging Transport Photos |
| FAQ |
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
