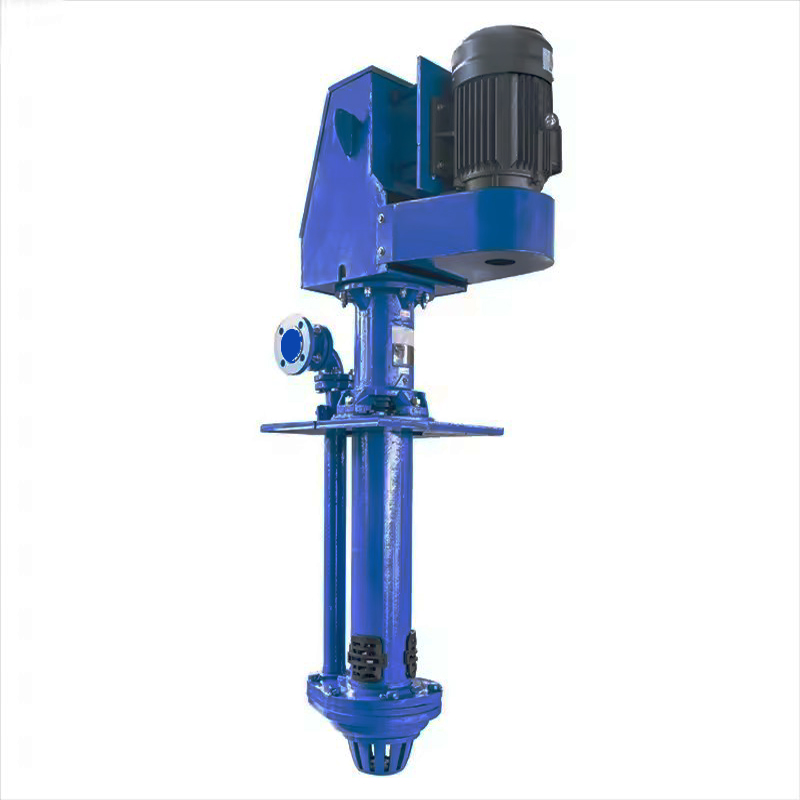

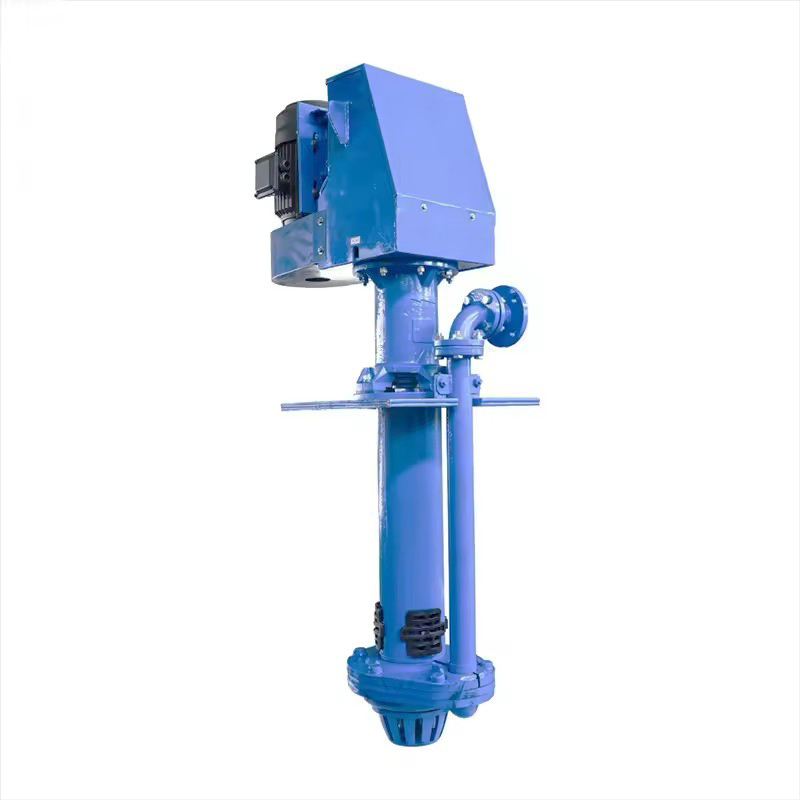

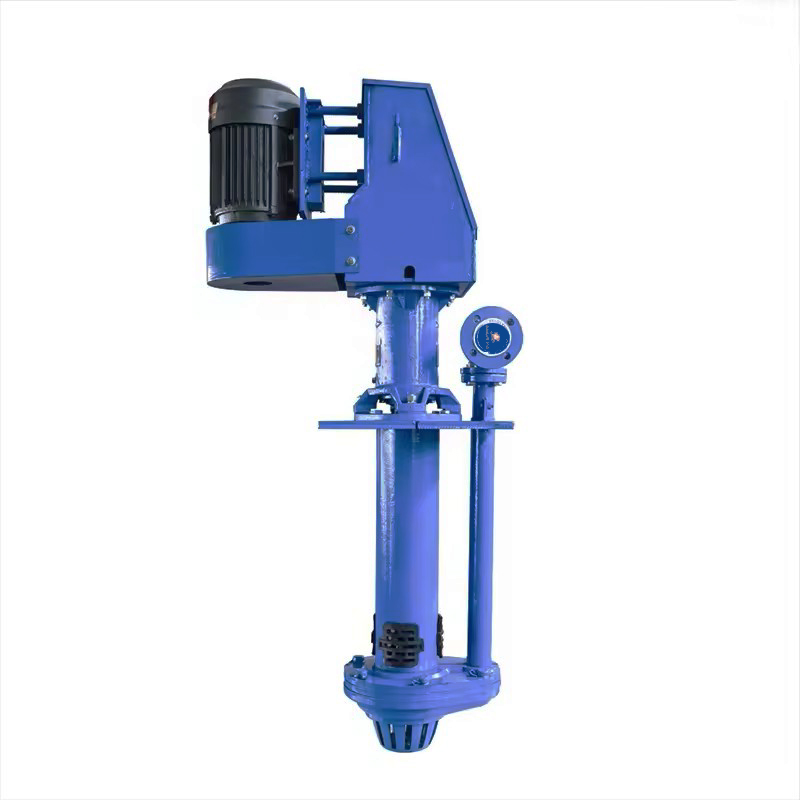

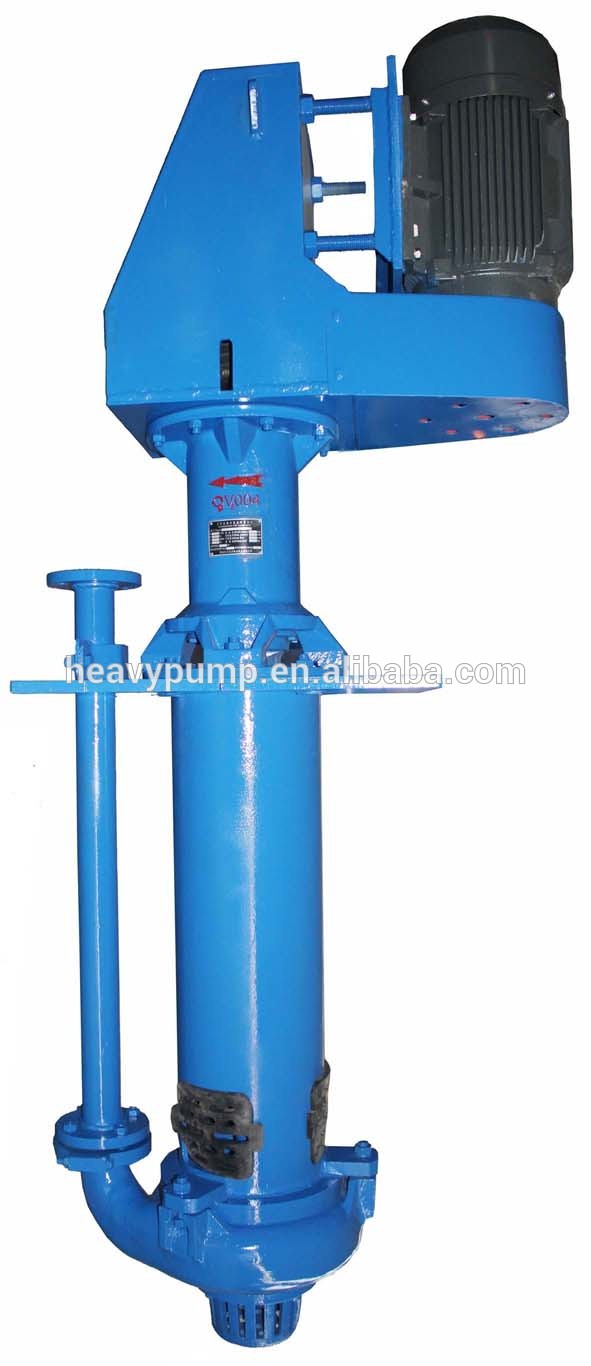

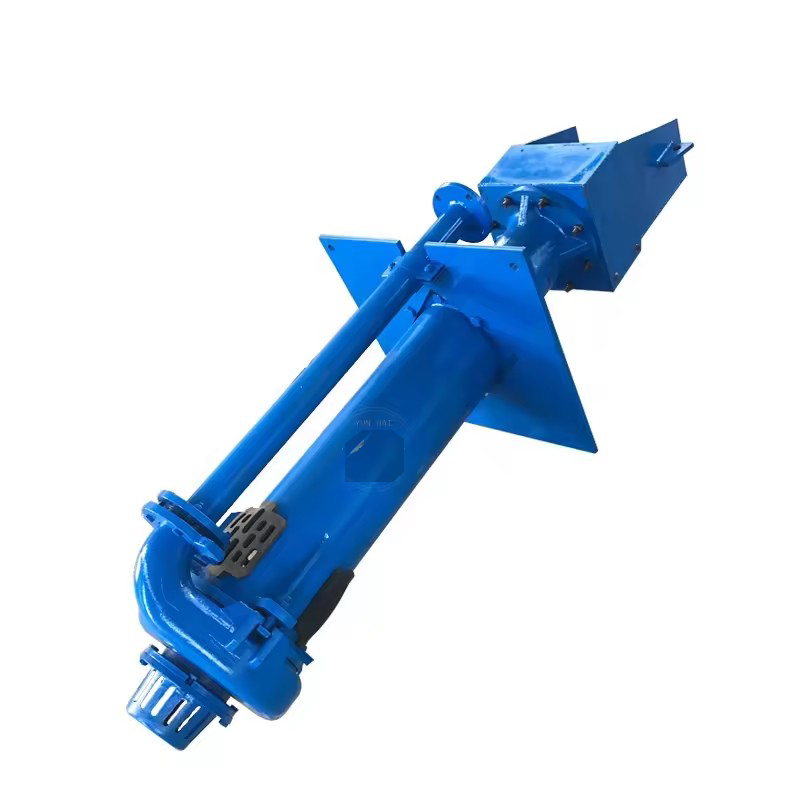

200VS(L)-SV Vertical slurry pump
Shijiazhuang Heavy Pump Company Limited 13
Summary Description
1)Capacity: 189—891 m3/h
2)Head: 6.5—37 m
3)Flow parts materials: Cr26 alloy
4)Allowable mating Mac power: 110 kw
$4700.00
PRODUCT DETAILS
| Product description |
Type VS and VSR pumps are vertical , centrifugal slurry pumps submerged in sump to work . They are designed for delivering abrasive , large particle and high density slurries . These pumps have no need of any shaft seal and sealing water . They can also be operated normally for insufficient suction duties . Wet parts of type VS pump are made of abrasion - resistant metal . All parts of type VSR pump immersed in liquid are lined with rubber outer liner . They are suited to transport non - edge angle abrasive slurry . The type with " L " is a sump pump of extension shaft series , which is suited for the working condition of deeper level . The guide bearing construction is added to the pump on the basis of the standard pump , so the pump is with both more steady oper - ation and wider application range , but flushing water should be attached to the guide bearing .
| Details Images |
|
 |
| Work environment |
 |
Features 1. High stength cast iron pump construction; 2. Impeller options are available to suit a range of applications and pumped products including single,double or triple vane; 3. 420 stainless steel shaft; 4. Built in cooling system allows operation when motor is submerged or above water level. |
| Product Paramenters |
| Pump Model | Material | Range of Performance | |||||
| Capacity(m³/h) | Head （m） | Speed(rpm) | Max.Eff(%) | Max Power(KW) | Impeller.Dia(mm) |
||
| 40VS(L)-QV | M | 19.44～43.2 | 4.5～28.5 | 1000～2200 | 40 |
15 |
188 |
| R40VS(L)-PV | R | 17.28～39.6 | 4～26 |
1000～2200 |
40 | ||
| 65VS(L)-QV | M | 23.4～111 | 5～29.5 | 700～1500 | 50 | 30 | 280 |
| R65VS(L)-QV | R | 22.5～105 |
5.5～30.5 |
700～1500 |
51 | ||
| 100VS(L)-RV | M | 54～289 | 5～35 | 500～1200 | 56 | 75 | 370 |
| R100VS(L)-RV | R | 64.8～285 |
7.5～36 |
600～1200 |
62 | ||
| 150VS(L)-SV | M | 108～479.16 | 8.5～40 | 500～1000 | 52 | 110 | 450 |
| 200VS(L)-SV |
M | 189～891 | 6.5～37 | 400～850 | 64 | 110 | 520 |
| 250VS(L)-TU |
M | 261～1089 | 7.5～33.5 | 400～750 | 60 | 200 | 575 |
| 300VS(L)-TU |
M | 288～1267 | 6.5～33 | 350～700 | 50 | 200 | 610 |
| Types of accessories |
| Company Profile |
Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.
| Heavy pump products in five series: | Heavy pump products advantage: |
| 1)Heavy horizontal slurry pump H series. | 1)Anti-abraisive metal. |
| 2)Heavy vertical slurry pump SP ( semi-submersible pump) | 2)Module design which makes the spareparts can be changed freely. |
| 3)Heavy dredge pump G series | 3)Designed and built for long time with low maintenance. |
| 4)Heavy gravel pump T series | Heavy Pump Company to the Customers: |
| 5)Heavy submersible pump | 1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it. |
| Heavy Slurry Pump Material: | 2)Fast delivery at your requirement. |
| a)Impeller: high-chromium alloy or rubber. | |
| b)Volute liner: high-chromium alloy. | |
| c)Shaft: 45# steel. | |
| d)Shaft sleeve: ductile casting. | |
| e)Frame plate: casting. |
|
| f)Packing seal: Mechanical seal or Gland seal. |
|
| We can choose the pump material according to pump working condition. |
| Production workshop corner |
| Use of Site |
| Enterprise production certificate |
| Customer Visit Photos |
| Packaging Transport Photos |
| FAQ |
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
