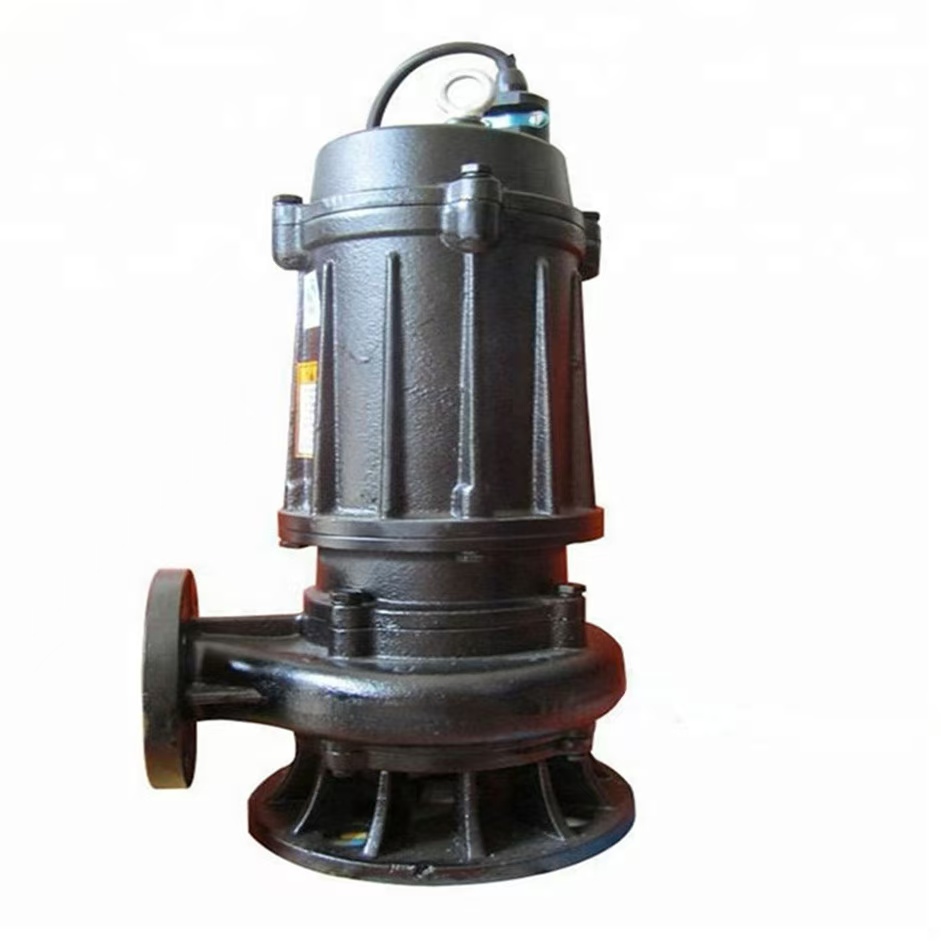

350WQK1500-50-315 Submersible Sewage pump

Shijiazhuang Heavy Pump Company Limited 1

Summary Description

1)Capacity: 1500 m3/h
2)Head: 50 m
3)Flow parts materials: Cr26 alloy
4)Allowable mating Mac power: 315 kw

$3150.00

Sent order request Contact supplier

PRODUCT DETAILS

Product description


Product usage：
WQ ( QW.WQK ) series submersible sewage pump applicable to transport containing solids and fiber of sewage or clean water .
Service conditions：
1.WQ ( QW ) series products in the rated voltage is 380 V , power frequency for 50 Hz when used.
2.the temperature of the medium no more than 40℃, medium density ≤1150 kg /m3, PH value in 5~9range.

3.the altitude does not exceed 1000 meters.
4.transport medium viscosity not super 1000 CP.
5.products work operation must be completely submerged , but shall not be more than 10 m diving depth.
6.the product material basically is cast iron , can not be used in strong corrosive or containing the corrosive medium.
Note : Sure to keep the pump before the selection or installation using the actual conditions of use in accordance with the above provisions , and ensure the correct use of products.

Details Images

	1. Up bearing
	2. Thermal protector
	3. Motor shaft
	4. Rotor
	5. Ststor
	6. Down bearing
	7. Oil-water detector
	8. Mechanical seal
	9. Nozzle
	10. Oil room
	11. Back cover board
	12. Impeller
	13. Pump boby
	14. Homogenize device


Work environment

Product Paramenters

Type	Capacity Q(m³/h)	Head H (m)	Power P （KW）	Speed N(r/min)	Dimensions
Type	Capacity Q(m³/h)	Head H (m)	Power P （KW）	Speed N(r/min)	L1	H	H1
25WQK10-20-2.2	10	20	2.2	2900	310	390	340
32WQK10-20-2.2	10	20	2.2	2900	350	420	380
40WQK10-25-2.2	10	25	2.2	2900	350	420	380
50WQK30-40-7.5	30	40	7.5	2900	440	620	570
65WQK25-70-18.5	25	70	18.5	2900	485	680	620
80WQK30-70-15	30	70	15	2900	560	730	680
100WQK120-70-75	120	70	75	1450	845	1450	1250
150WQK200-55-55	200	55	55	1450	630	1340	1220
200WQK300-70-160	300	70	160	980	820	1740	1700
250WQK500-55-132	500	55	132	1450/2900	760	1760	1500
300WQK800-45-185	800	45	185	1450	1140	1830	1780
350WQK1500-50-315	1500	50	315	1450	1170	2250	2100
400WQK2000-28-250	2000	28	250	1450	1220	2250	2100
450WQK2250-30-315	2250	30	315	1450	1200	2190	2000
500WQK2500-35-355	2500	35	355	1450	1250	2470	2200
600WQK4200-20-355	4200	20	355	980	1450	2670	2400
800WQK9000-10-355	9000	10	355	740	1650	2950	2700

Working principle

	Product features
	1: There is a leakage detection probe in the pump junction cavity, when there is a leakage, the probe sends a signal, and the control system protects the LBPV sewage pump.
	2: The machine seal adopts a unique double-sided machine seal, which is in the closed oil chamber for a long time to ensure that the LBPV sewage pump is safe and reliable for a long time.
	3: The motor is equipped with a leak-proof alarm, and the water enters the motor to automatically alarm and stop.
	4:High quality stainless steel sleeve is installed on the motor casing to form a unique circulating cooling system, which ensures the LBPV sewage pump to work normally at the lowest water level of the pool and further clean the pool medium.
	5: The machine seal adopts a unique double-sided machine seal, which is in a closed oil chamber for a long time to ensure that the LBPV sewage pump is safe and reliable for a long time.
	6: The oil chamber is equipped with oil-water probe, when the machine seal is damaged, the water enters the oil chamber, the probe sends a signal, and the control system protects the LBPV sewage pump.
	7: The hydrodynamic seal of the auxiliary impeller structure has the auxiliary sealing function to protect the mechanical seal, balance the axial force and prolong the service life of the bearing, so that the users of the LBPV sewage pump can be assured to use.
	8: The unique "double-channel cut-off non-clogging impeller" structure can discharge the long fibers in the sewage after cutting off, greatly improving the sewage discharge capacity of the sewage sludge.
	9: The automatic agitator produces strong agitator, which can agitate the sediment in the pool into suspended solid matter.

Types of accessories

Company Profile

Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.

Heavy pump products in five series:	Heavy pump products advantage:
1)Heavy horizontal slurry pump H series.	1)Anti-abraisive metal.
2)Heavy vertical slurry pump SP ( semi-submersible pump)	2)Module design which makes the spareparts can be changed freely.
3)Heavy dredge pump G series	3)Designed and built for long time with low maintenance.
4)Heavy gravel pump T series	Heavy Pump Company to the Customers:
5)Heavy submersible pump	1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it.
Heavy Slurry Pump Material:	2)Fast delivery at your requirement.
a)Impeller: high-chromium alloy or rubber.
b)Volute liner: high-chromium alloy.
c)Shaft: 45# steel.
d)Shaft sleeve: ductile casting.
e)Frame plate: casting.
f)Packing seal: Mechanical seal or Gland seal.
We can choose the pump material according to pump working condition.

Production workshop corner


Use of Site

Enterprise production certificate


Business license
Customs Union EAC
Certification CE certification
ISO 9001 certificate

Customer Visit Photos

Visit and purchase products from South African customers
Visit and purchase products from Korean customers
From Russian customers for inspection and procurement of products
Visit and purchase products from Malaysia customers

Packaging Transport Photos

Heavy pump with the unremitting pursuit of high quality and high performance and unlimited enthusiasm to innovate new products, with superb technology, strict quality control and excellent service, have won the favor of customers all over the world.
Heavy pump have been successfully exported to more than 100 countries around the world, so that the world has witnessed the charm of Made in China.

FAQ

Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
