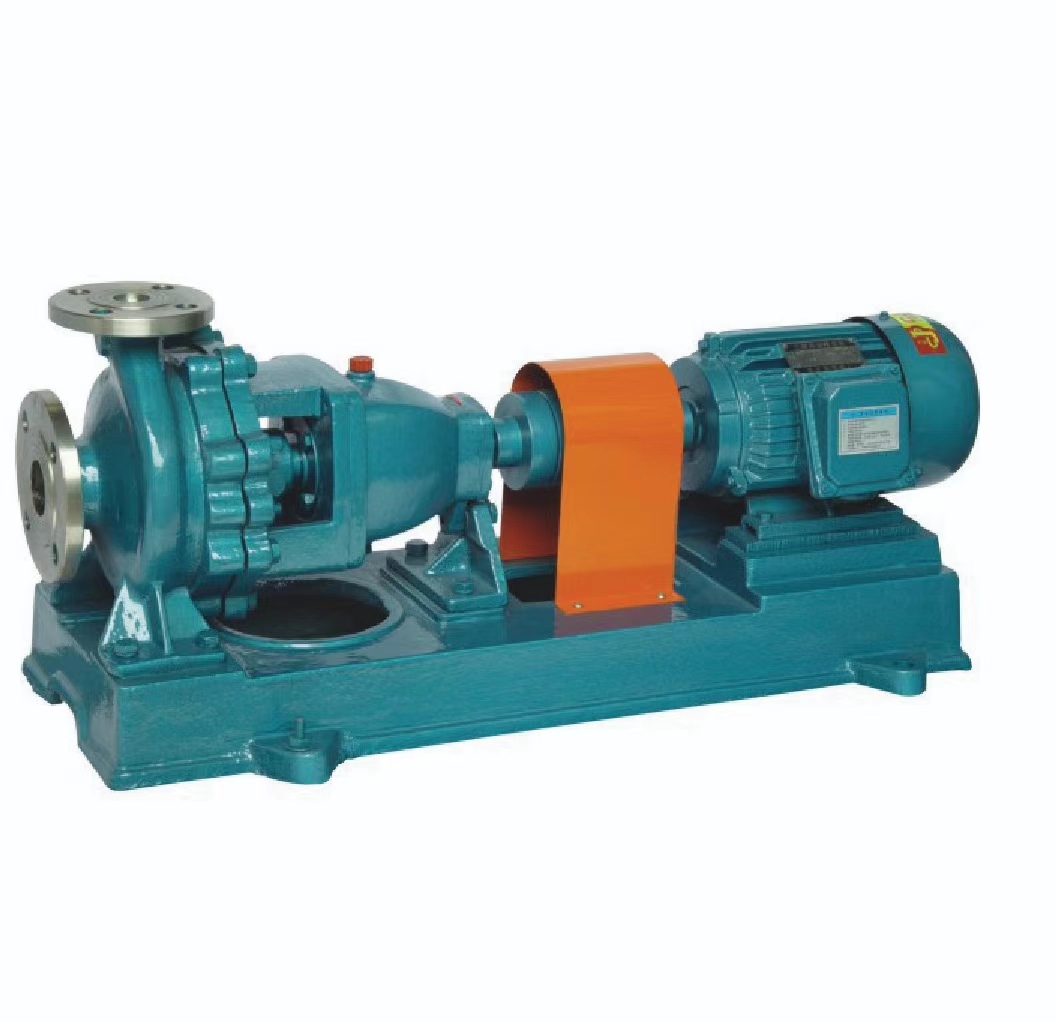

IH50-32-125 Water pump
Shijiazhuang Heavy Pump Company Limited25
Summary Description
1)Capacity: 12.5m³/h
2)Head: 20 m
3)Flow parts materials: Cr26 alloy
4)Allowable mating Mac power: 2.2 kw
$982.00
PRODUCT DETAILS
|
Product description |
|
IH model chemical pump is single - stage single - suction ( axial suction ) cantilever type centrifu gal pump , which is used to transport corrosive liquid with viscosity similar to water and without solid particles . The marked and rated performances and dimensions adopt ISO2858 international standard . It has such characteristics as wide range of performance , high efficiency , high mechanical , chemicaland physical level and convenient maintenance etc . It is energy saving type product recommended by the nation with its efficiency being 5% greater than that of Fmodel pump . |
The working medium temperature of IH chemical pump ranges from -20'℃~105'℃, and the pump can transport media at a higher temperature with cooling measures taken when necessary . It ' s applicable to transport all kinds of corrosive media or those not allowed being contaminated and similar as water for such industries as chemical engineering , petroleum , metallurgy , power , papermaking , food , pharmacy and synthetic fibers . Range of Product Performance Flow ( Q ):6.3~400m3/h; Head ( H ):5~125m; Rotation speed ( n ):29001450r/ min ; Power :0.55~90kW; Inlet diameter :50~200mm; Max . working pressure :1.6MPa IH pump series has 29 basic types ,22 of which have double speeds (2,900r/ min and 1,450r/ min ), and is up to 112 specifications after impeller diameter cutting and transforming with types A and B . |

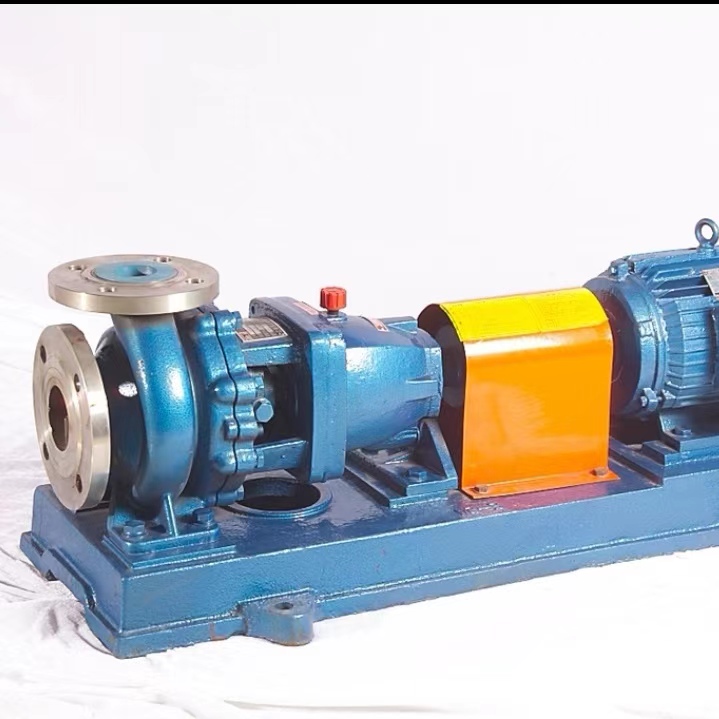

| Details Images |
| Work environment |
| Product Paramenters |
| Working principle |
 |
IH pump series was jointly designed by the national pump industry as per ISO , and it mainly consists of body , impeller , seal ring , impeller nut , pump bonnet , sealing element , intermediate support , shaft , suspension bracket , etc .
Structural feature of pump ( see Fig .1):
The pump ' s structural feature is : its bonnet is fixed on the intermediate support through a rabbet and clamped in between through the coupling between its body and the intermediate support rabbet ; its body adopts axial suction and radial discharge , and with a foot support type , it can be fixed directly on the base . The suspension component is fixed on the intermediate support through a rabbet and supported on the base with a suspension support . For easy disassembly , it ' s designed with a lengthened coupling so that it ' s unnecessary to disassemble inlet and outlet connecting pipelines , the pump body and the motor but just the intermediate connector of the lengthened coupling to unload the rotor part for overhaul . This is a universal structural type in the world .

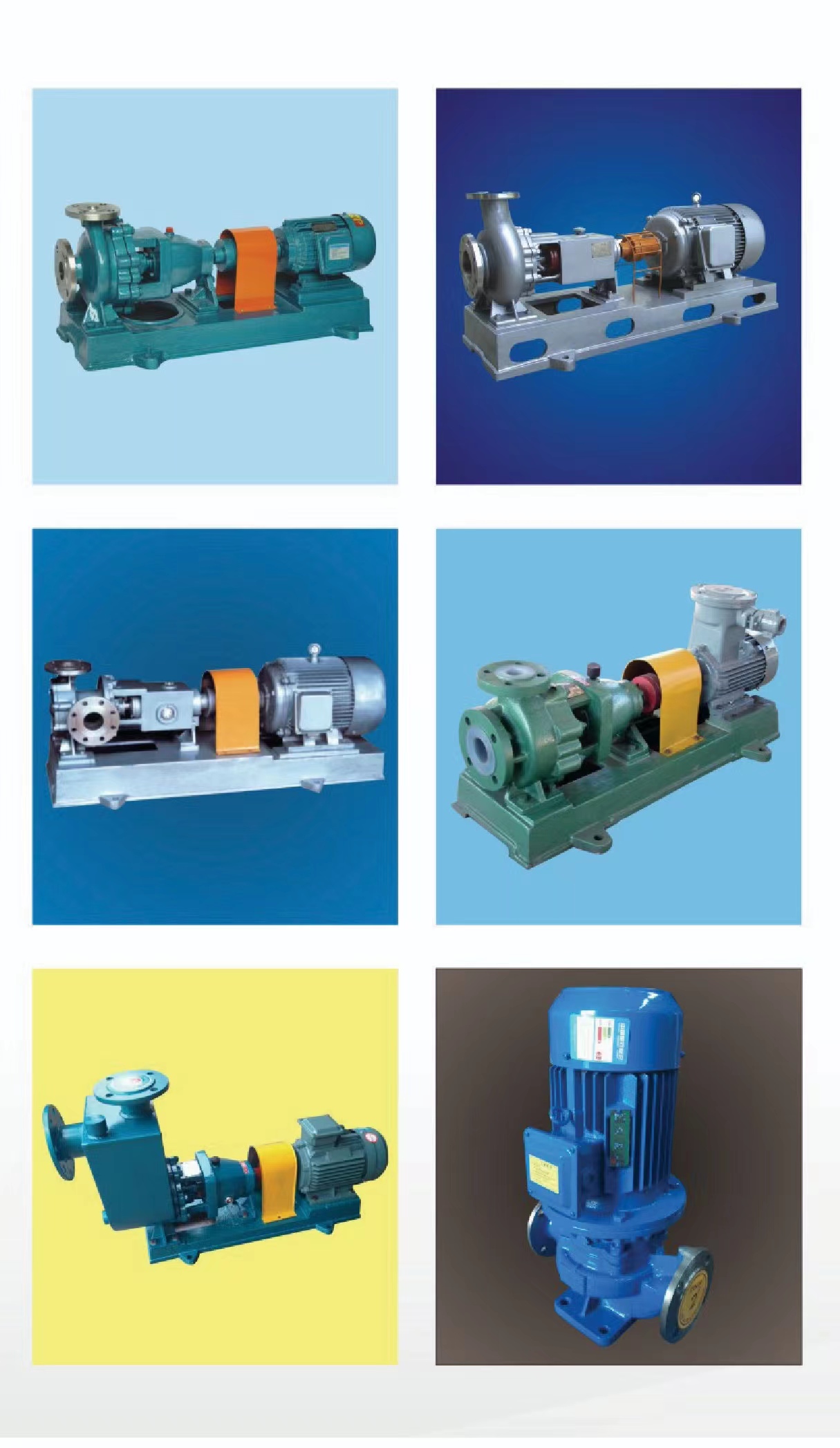

| Types of accessories |
| Company Profile |
Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.
| Heavy pump products in five series: | Heavy pump products advantage: |
| 1)Heavy horizontal slurry pump H series. | 1)Anti-abraisive metal. |
| 2)Heavy vertical slurry pump SP ( semi-submersible pump) | 2)Module design which makes the spareparts can be changed freely. |
| 3)Heavy dredge pump G series | 3)Designed and built for long time with low maintenance. |
| 4)Heavy gravel pump T series | Heavy Pump Company to the Customers: |
| 5)Heavy submersible pump | 1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it. |
| Heavy Slurry Pump Material: | 2)Fast delivery at your requirement. |
| a)Impeller: high-chromium alloy or rubber. | |
| b)Volute liner: high-chromium alloy. | |
| c)Shaft: 45# steel. | |
| d)Shaft sleeve: ductile casting. | |
| e)Frame plate: casting. |
|
| f)Packing seal: Mechanical seal or Gland seal. |
|
| We can choose the pump material according to pump working condition. |
| Production workshop corner |
| Use of Site |
| Enterprise production certificate |
Business license
Customs Union EAC
Certification CE certification
ISO 9001 certificate
| Customer Visit Photos |
Visit and purchase products from South African customers
Visit and purchase products from Korean customers
From Russian customers for inspection and procurement of products
Visit and purchase products from Malaysia customers
| Packaging Transport Photos |
Heavy pump with the unremitting pursuit of high quality and high performance and unlimited enthusiasm to innovate new products, with superb technology, strict quality control and excellent service, have won the favor of customers all over the world.
Heavy pump have been successfully exported to more than 100 countries around the world, so that the world has witnessed the charm of Made in China.
| FAQ |
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
