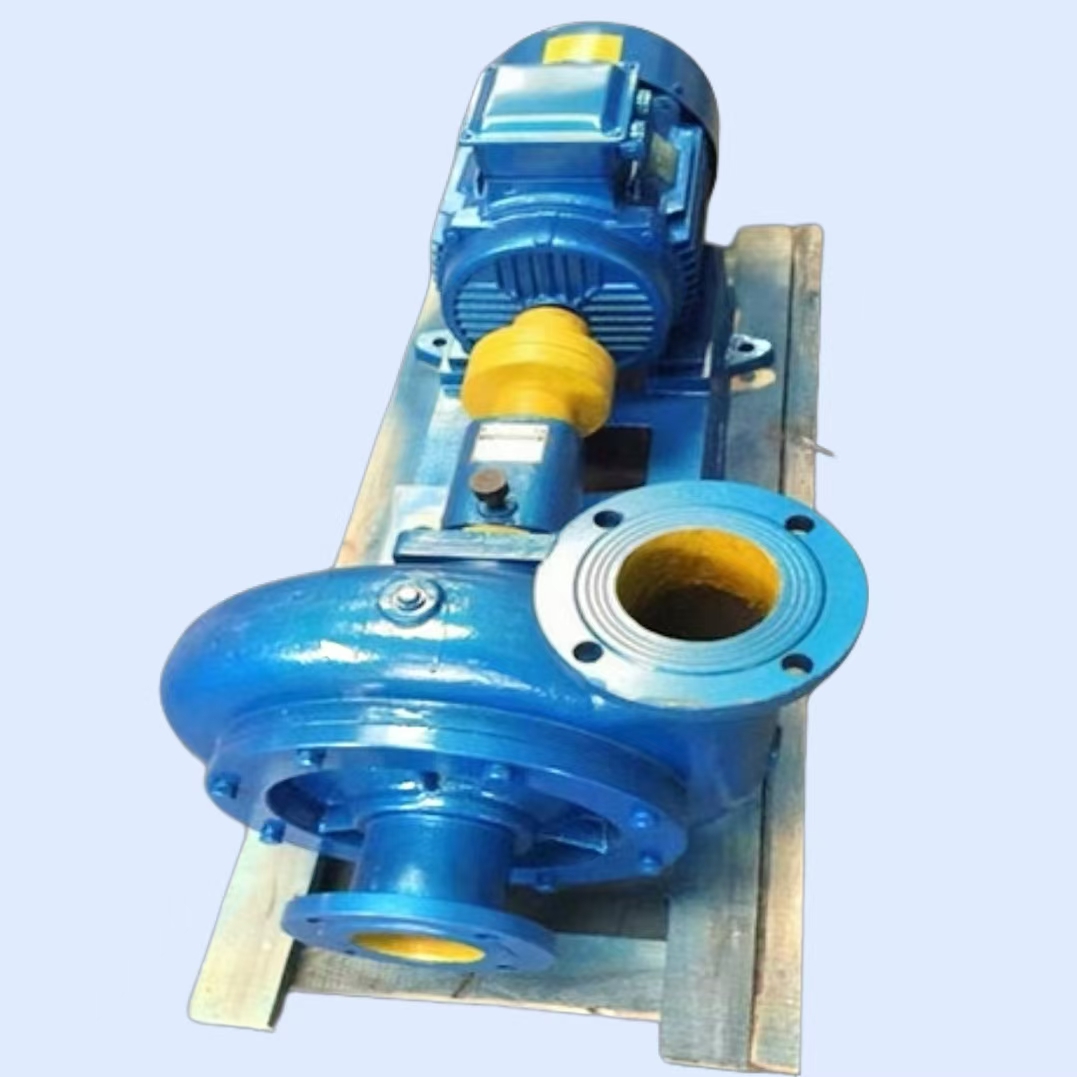

100WG Sewage pump
Shijiazhuang Heavy Pump Company Limited 8
Summary Description
1)Capacity: 76 m3/h
2)Head: 13.6 m
3)Flow parts materials: Cr26 alloy
4)Allowable mating Mac power: 11 kw
$422.00
PRODUCT DETAILS
|
Product description |
|
TypeWD,WDF,WDL,WG and WGF sewage pumps are of new series designed in compliance with Ministry Standard “Centrifugal Sewage Pump” JB 2975.The series of pump is a high efficiency and energy saving product with advanced design,compactive construction,little installation space and high efficiency. |
The wet parts of the type WDF,WGF sewage pumps are made of stainless- steel.Therefoore,the pumps are suitable for delivering acid,alkalinous and other corrosive sewage.The pumps may be used for delivering chemical fluid at a temperature not being more than 80°C in the process of chemical industry and for delivering the fluid of food industry. |
| Details Images |
| Work environment |
| Product Paramenters |
|
Type
|
Capacity Q | Head H (m) | Spee-d n（r/min） | Power P （KW） | Effic-iency η （%） | Max perm-issible vacuum suction height Hs（m） | Impe-ller diam-eter（mm） | ||
| m3/h | l/s | Power on shaft |
Power of motor |
||||||
|
25WG 25WGF |
3 4.25 7.25 |
0.83 1.18 2.01 |
11.5 11 8.5 |
1700 |
0.36 0.41 0.45 |
Y90s-4 1.1 |
26 31 37 |
4.5 3.6 3.3 |
165 |
|
80WG 80WGF |
20 39.2 53 |
5.5 10.8 14.7 |
11.6 10.8 10.2 |
1440 |
1.33 1.79 2.16 |
Y100L2-2 3 |
47 64 68 |
1.5 1.6 1.6 |
196 |
|
100WD 100WDF |
96 140 186.5 |
26.7 38.09 51.8 |
15.5 15 14 |
970 |
6.76 8.76 10.3 |
Y180L-6 15 |
60 65.3 69 |
2.2 2.6 3.0 |
335 |
|
100WG 100WGF |
76 108.8 130.56 |
21.1 30.22 36.27 |
13.6 12.6 12 |
970 |
5.24 5.79 6.42 |
Y160L-6 11 |
53.7 64.5 66.5 |
2.0 2.4 2.6 |
315 |
|
250WD 250WDL |
750 1000 1250 |
208 278 345 |
27.5 25 22.5 |
980 |
78 92 107 |
JS125-6 130 |
71.7 74 71.5 |
4.2 5.2 6.7 |
460 |
|
800WD 800WDL |
3425 4100 4831 |
951.4 1139 1342 |
6.13 6 5 |
360 |
75.2 87 88.7 |
JSL126 115 |
76 76.8 74 |
6.4 6.5 6.6 |
680 |
| Working principle |
Product Features:
1.no clogging, can be pumping containing large particles of solid blocks, long fiber wastewater, such as: septic tanks, sewers, chemicals, dyeing wastewater.
2.high lift, the highest lift can reach 80 meters, equivalent to 25 stories high.
3.the suction range is large, the maximum suction range can reach 5 meters, allowing the pump to stay away from the river side.
4.the fixed seat can be fixed to the ground.
5.customizable stainless steel, marine 440 / 660V voltage, explosion-proof. Maintenance.
| Types of accessories |
| Company Profile |
Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.
| Heavy pump products in five series: | Heavy pump products advantage: |
| 1)Heavy horizontal slurry pump H series. | 1)Anti-abraisive metal. |
| 2)Heavy vertical slurry pump SP ( semi-submersible pump) | 2)Module design which makes the spareparts can be changed freely. |
| 3)Heavy dredge pump G series | 3)Designed and built for long time with low maintenance. |
| 4)Heavy gravel pump T series | Heavy Pump Company to the Customers: |
| 5)Heavy submersible pump | 1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it. |
| Heavy Slurry Pump Material: | 2)Fast delivery at your requirement. |
| a)Impeller: high-chromium alloy or rubber. | |
| b)Volute liner: high-chromium alloy. | |
| c)Shaft: 45# steel. | |
| d)Shaft sleeve: ductile casting. | |
| e)Frame plate: casting. |
|
| f)Packing seal: Mechanical seal or Gland seal. |
|
| We can choose the pump material according to pump working condition. |
| Production workshop corner |
| Use of Site |
| Enterprise production certificate |
Business license
Customs Union EAC
Certification CE certification
ISO 9001 certificate
| Customer Visit Photos |
Visit and purchase products from South African customers
Visit and purchase products from Korean customers
From Russian customers for inspection and procurement of products
Visit and purchase products from Malaysia customers
| Packaging Transport Photos |
Heavy pump with the unremitting pursuit of high quality and high performance and unlimited enthusiasm to innovate new products, with superb technology, strict quality control and excellent service, have won the favor of customers all over the world.
Heavy pump have been successfully exported to more than 100 countries around the world, so that the world has witnessed the charm of Made in China.
| FAQ |
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
