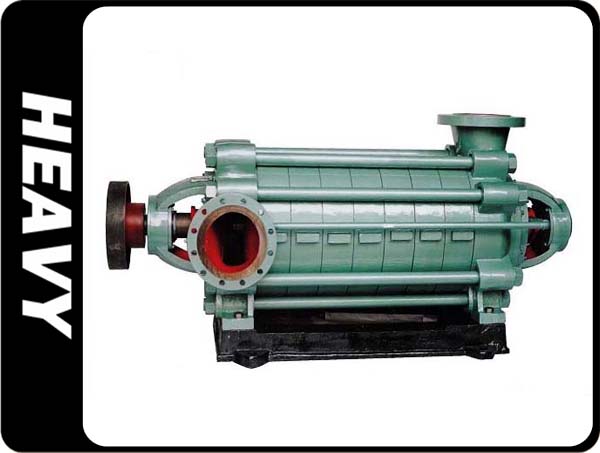

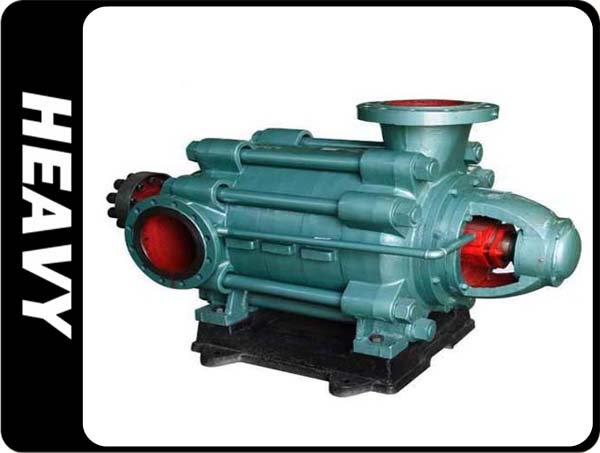

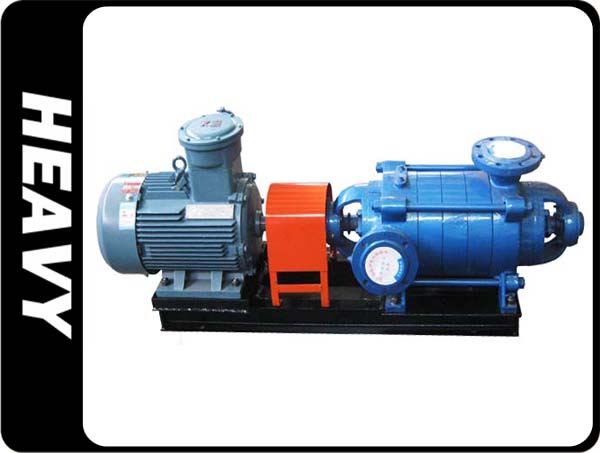

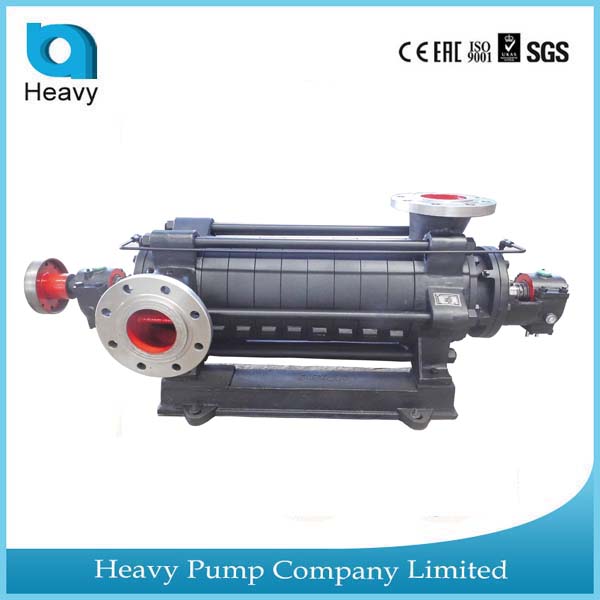

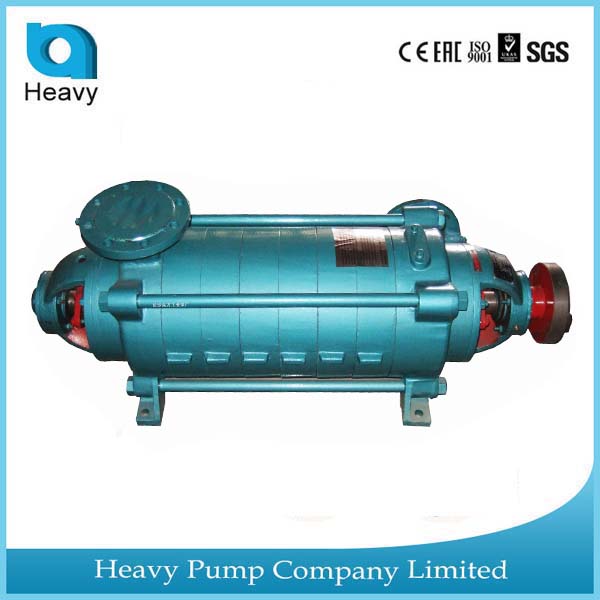

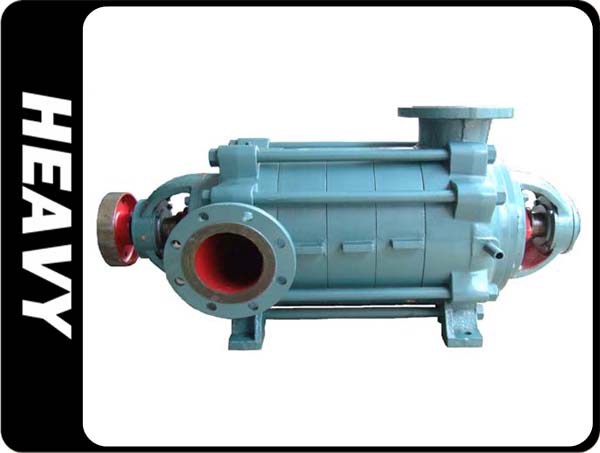

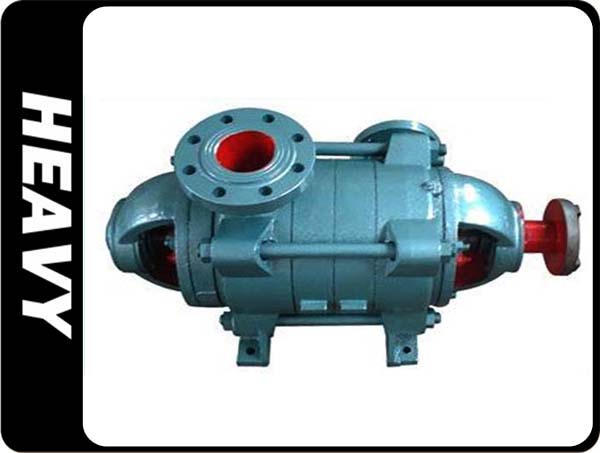

MD46-50(SL) Multistage centrifugal pump
Shijiazhuang Heavy Pump Company Limited 8
Summary Description
1)Capacity: 30 m3/h
2)Head: 166.5 m
3)Flow parts materials: Cr26 alloy
4)Allowable mating Mac power: 37 kw
$1000.00
PRODUCT DETAILS
| Product description |
|
|
The structure of a multistage centrifugal pump comprises the middle part of a pump body, a water inlet section is connected with a volute, and a water outlet section is connected with a volute and an assembling volute, wherein, a first stage pump shaft is arranged in the water inlet section connected with the volute, a second stage pump shaft is arranged in the discharging section connected with the volute and an assembling pump shaft is arranged in the assembling volute. The middle part of the outer wall of each pump shaft is connected with an impeller, and the number of volutes can be increased or decreased according to needs to meet the needs of different heads. Multistage centrifugal pump has the advantages of compact structure, stable operation, large flow, high head, high efficiency, widely used in petrochemical, electric power, metallurgy, pharmaceutical, papermaking and other industries, is an indispensable important equipment in modern industrial production. |
| Application area |
| Details Images |
| 1 | CIutch part | 3 | Bearing boby | 5 | Inlet section | 7 | Middle-seetion | 9 | Guide vane | 11 | Water-sealing pipe part | 13 | Balancing sleeve | 15 | Stuffing content |
| 2 | Shaft | 4 | Stuffing gland | 6 | Seal-ring | 8 | Impeller | 10 | Guide vane sleeve | 12 | Outlet section | 14 | Balancing disk | 16 | Bearing |
| Work environment |
| Product Paramenters |
| MD25-30(SL) Multistage centrifugal pump |
| No of stage | Capacity | Head(M) | Speed(r/min) | Power(KW) | Efficiency(％) | (Npsh)r(m) |
Weight(kg) | ||
| (m³/h) | (L/s) | shaft power | Motor power | ||||||
| 3 |
15 25 30 |
4.17 6.94 8.33 |
102 90 83 |
2950 |
8.33 9.88 10.70 |
15.0 |
50 62 63 |
2.2 2.2 2.6 |
175 |
| 4 |
15 25 30 |
4.17 6.94 8.33 |
136 120 110 |
2950 |
11.11 13.10 14.26 |
18.5 |
50 62 63 |
2.2 2.2 2.6 |
192 |
| 5 |
15 25 30 |
4.17 6.94 8.33 |
170 150 138 |
2950 |
13.89 16.47 17.83 |
22.0 |
50 62 63 |
2.2 2.2 2.6 |
209 |
| 6 |
15 25 30 |
4.17 6.94 8.33 |
204 180 165 |
2950 |
16.67 19.77 21.40 |
30.0 |
50 62 63 |
2.2 2.2 2.6 |
226 |
| 7 |
15 25 30 |
4.17 6.94 8.33 |
238 210 193 |
2950 |
19.44 23.10 24.96 |
30.0 |
50 62 63 |
2.2 2.2 2.6 |
243 |
| 8 |
15 25 30 |
4.17 6.94 8.33 |
272 240 220 |
2950 |
22.22 26.40 28.53 |
37.0 |
50 62 63 |
2.2 2.2 2.6 |
260 |
| 9 |
15 25 30 |
4.17 6.94 8.33 |
306 270 248 |
2950 |
25.00 29.65 32.10 |
37.0 |
50 62 63 |
2.2 2.2 2.6 |
277 |
| 10 |
15 25 30 |
4.17 6.94 8.33 |
340 300 275 |
2950 |
27.80 32.90 35.70 |
45.0 |
50 62 63 |
2.2 2.2 2.6 |
294 |
| Working principle |
| Types of accessories |
| Company Profile |
Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.
| Heavy pump products in five series: | Heavy pump products advantage: |
| 1)Heavy horizontal slurry pump H series. | 1)Anti-abraisive metal. |
| 2)Heavy vertical slurry pump SP ( semi-submersible pump) | 2)Module design which makes the spareparts can be changed freely. |
| 3)Heavy dredge pump G series | 3)Designed and built for long time with low maintenance. |
| 4)Heavy gravel pump T series | Heavy Pump Company to the Customers: |
| 5)Heavy submersible pump | 1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it. |
| Heavy Slurry Pump Material: | 2)Fast delivery at your requirement. |
| a)Impeller: high-chromium alloy or rubber. | |
| b)Volute liner: high-chromium alloy. | |
| c)Shaft: 45# steel. | |
| d)Shaft sleeve: ductile casting. | |
| e)Frame plate: casting. |
|
| f)Packing seal: Mechanical seal or Gland seal. |
|
| We can choose the pump material according to pump working condition. |
| Production workshop corner |
| Use of Site |
| Enterprise production certificate |
Business license
Customs Union EAC
Certification CE certification
ISO 9001 certificate
| Customer Visit Photos |
Visit and purchase products from South African customers
Visit and purchase products from Korean customers
From Russian customers for inspection and procurement of products
Visit and purchase products from Malaysia customers
| Packaging Transport Photos |
Heavy pump with the unremitting pursuit of high quality and high performance and unlimited enthusiasm to innovate new products, with superb technology, strict quality control and excellent service, have won the favor of customers all over the world.
Heavy pump have been successfully exported to more than 100 countries around the world, so that the world has witnessed the charm of Made in China.
| FAQ |
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
