Shijiazhuang Heavy Pump Company Limited27

Sent order request

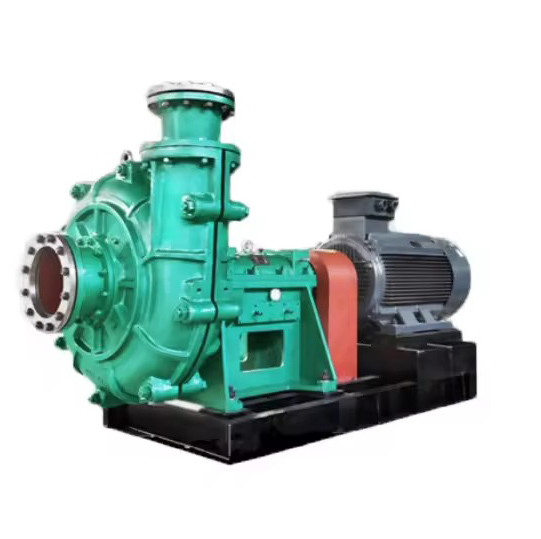

150ZJ(G)-I-A71 Slurry pump

Shijiazhuang Heavy Pump Company Limited27

Summary Description

1)Capacity: 142-552m³/h
2)Head: 21.8-93.8 m
3)Flow parts materials: Cr26 alloy
4)Allowable mating Mac power: 220 kw

$7010.00

PRODUCT DETAILS

Product description



9.jpgThe ZJ ( G ) series slurry pumps , which are created by Shijiazhuang Impurity Pumps Co ., Ltd , is a new generation anti - wear , energy saving , slurry pump . The ZJ ( G ) series pumps used international advanced solid - liquid two - phase flow theory and were designed using the Minimum - Wear Principle . The flow parts of this pumps are suitable for the flow of state media for it ' s set shape , which reduces hydraulic loss of eddy and impact , both in pump and along the pipeline ; so reduced friction of flow parts , lower noise and vibration of the pump translates into improved hydraulic efficiency .
The ZJ ( G ) series pumps are cased in hard - alloy which is a high anti - wear and high anti - corrosive impact resistance material , which means the pump will have a longer service life . In addition , this series pumps used an automatic reduced pressure system to avoid liquid leakage .
The ZJ ( G ) series slurry pumps are widely used in mining , metallurgy , power , coal and building material sectors . The ZJ ( G ) series pumps are suitable for handling abrasive and corrosive solids - bearing slurry with maximum concentrations of wt .45%( ash ) and wt .60%( ore ).
We have all kinds of ZJ ( G ) series slurry pumps , all of which can be made of directly driven ( DC ), directly driven via hydraulic coupling ( HC ), belt driven , and they can be operated in tandem and parallel positions according to the requirements of the customer .

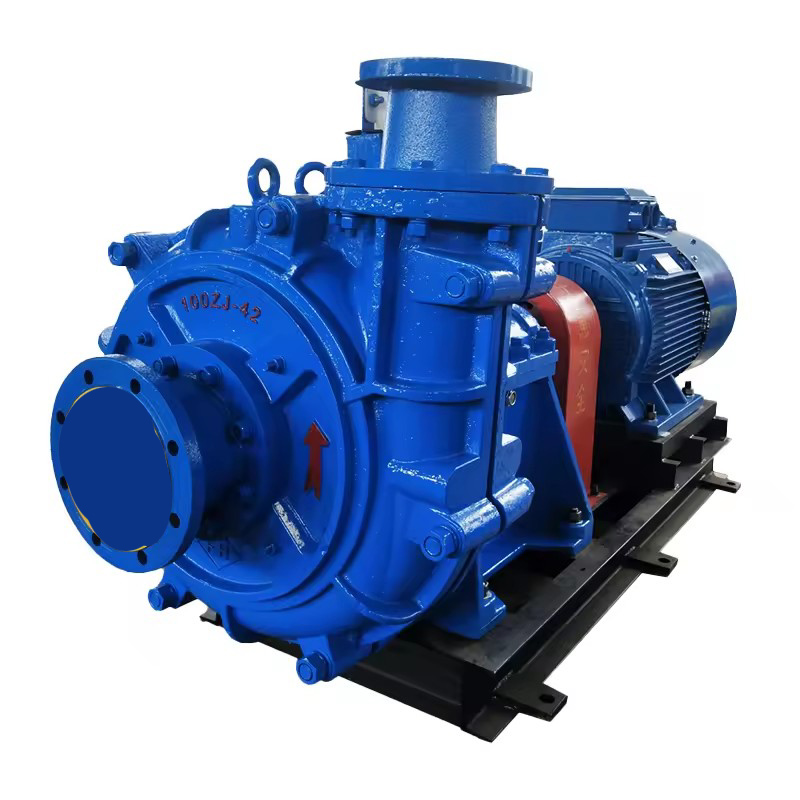

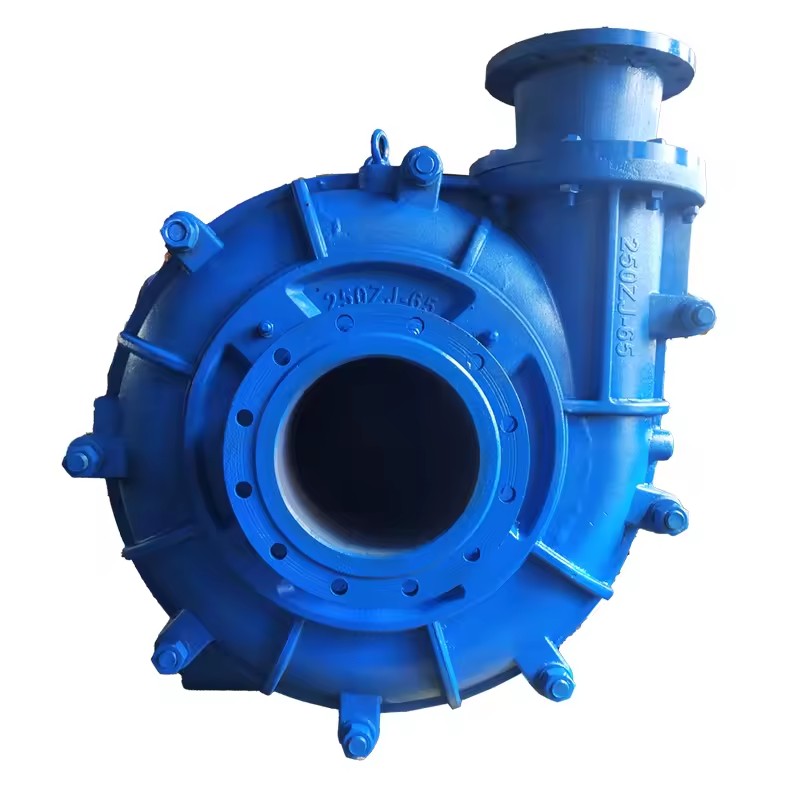

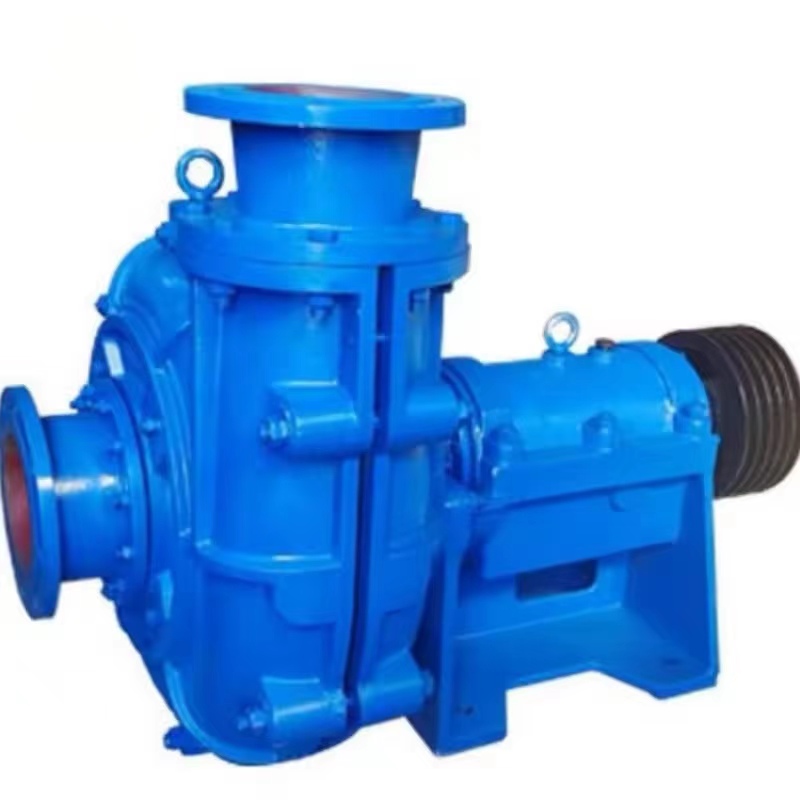

Details Images


 Work environment


Product Paramenters
Type Max Power(KW) Clear water Performance Pump Weinght(KG)
Capacity(m³/h) Head(M) Speed(rpm) Max.Eff(%) NPSH(m)
150ZJ(G)-I-A71
220 142-552 21.8-93.8 490-980
69.8 2.4 2263
150ZJ(G)-I-A70
185 93-401 20.0-91.2 490-980
62.3 2.0 2245
150ZJ(G)-I-A65
200 150-600 17.4-75.7 490-980
70.8 2.5 2223
150ZJ(G)-I-A63
185 146-582 16.3-71.1 490-980
69.8 2.5 2211
150ZJ(G)-I-A60
160 135-550 14.7-63.5 490-980
75.9 2.5 2203
150ZJ(G)-I-A58
132 131-532 13.7-59.3 490-980
74.9 2.5 2033
150ZJ(G)-I-C58
160 134-596 12.8-61.0 490-980
69.1 2.0 2063
150ZJ(G)-I-A57
110 95-427 13.2-56.3 490-980
67.8 1.8 2023
150ZJ(G)-I-A55
110 124-504 12.3-53.4 490-980
72.9 2.3 2019
150ZJ(G)-I-A50
75 115-460 9.5-43.1 490-980
76.8 2.5 1735(1648)
150ZJ(G)-I-A48
75 111-442 8.7-39.7 490-980
75.8 2.5 1728(1641)
150ZJ(G)-I-C42
132 142-550 12.1-62.8 700-1480
77.1 2.2 1605(1518)
Working principle
Types of accessories




Company Profile




Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.

Heavy pump products in five series: Heavy pump products advantage:
1)Heavy horizontal slurry pump H series. 1)Anti-abraisive metal.
2)Heavy vertical slurry pump SP ( semi-submersible pump) 2)Module design which makes the spareparts can be changed freely.
3)Heavy dredge pump G series 3)Designed and built for long time with low maintenance.
4)Heavy gravel pump T series Heavy Pump Company to the Customers:
5)Heavy submersible pump 1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it.
Heavy Slurry Pump Material: 2)Fast delivery at your requirement.
a)Impeller: high-chromium alloy or rubber.
b)Volute liner: high-chromium alloy.
c)Shaft: 45# steel.
d)Shaft sleeve: ductile casting.
e)Frame plate: casting.

f)Packing seal: Mechanical seal or Gland seal.

We can choose the pump material according to pump working condition.

Production workshop corner


Use of Site


Enterprise production certificate


Customer Visit Photos




Packaging Transport Photos


FAQ

Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
