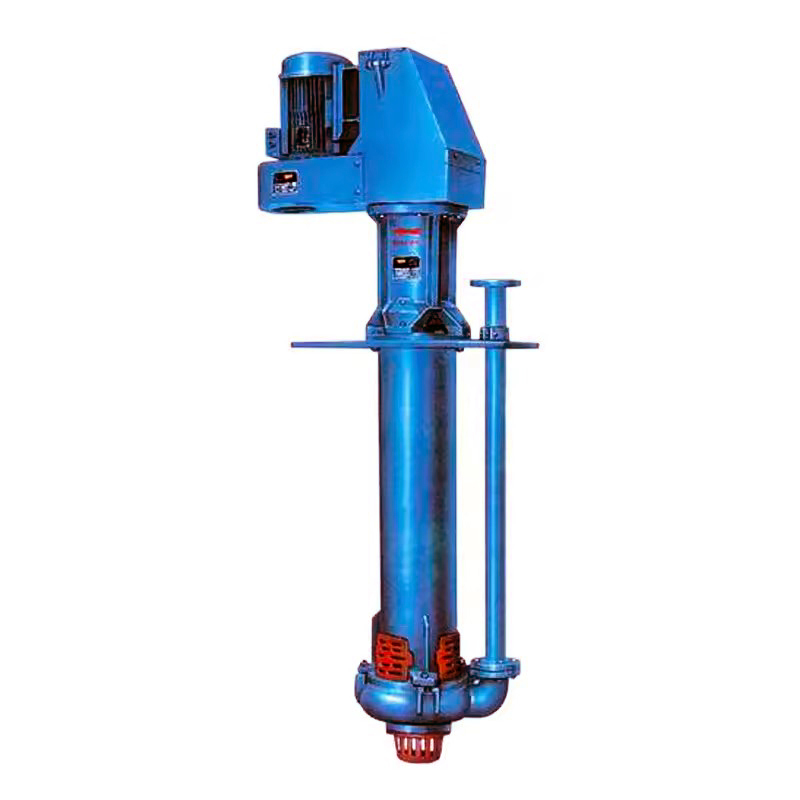

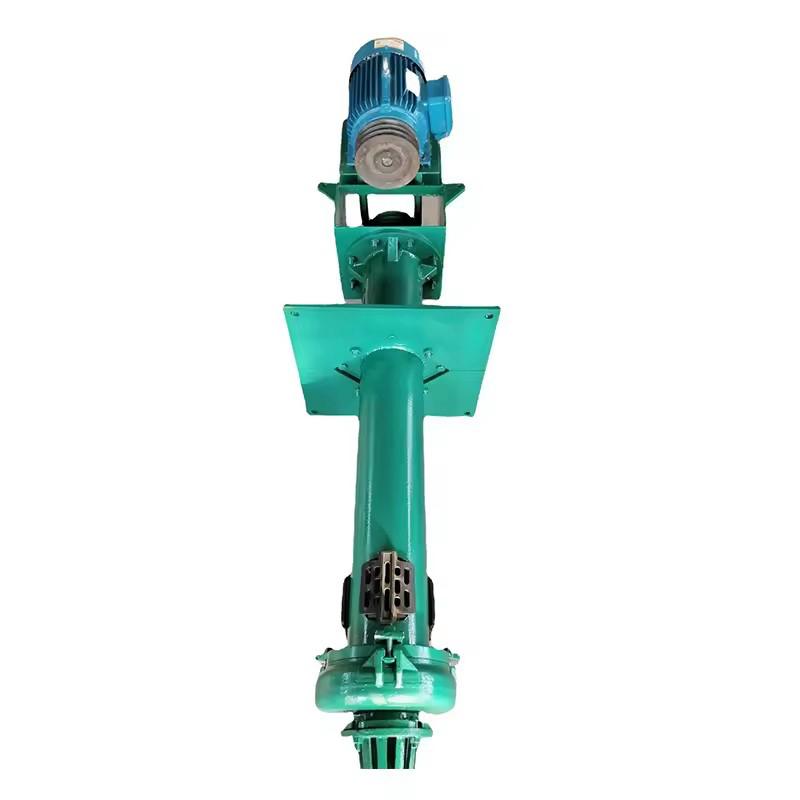

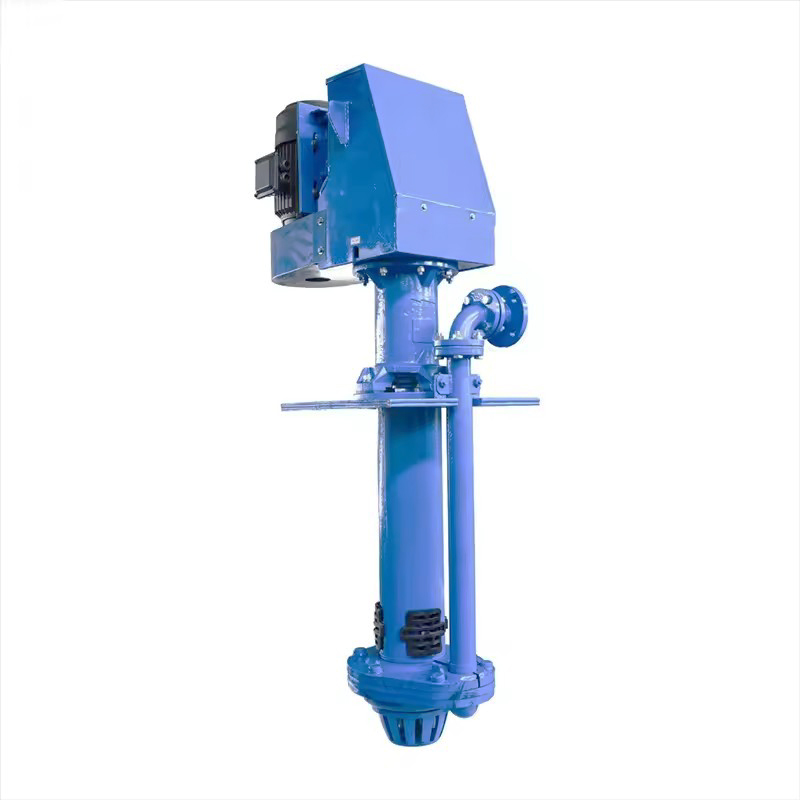

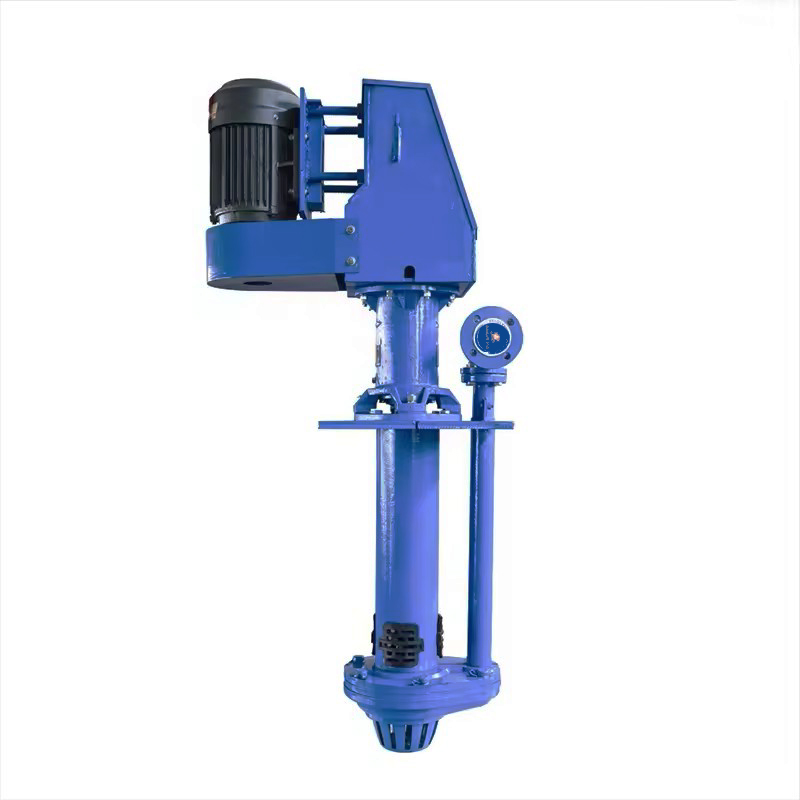

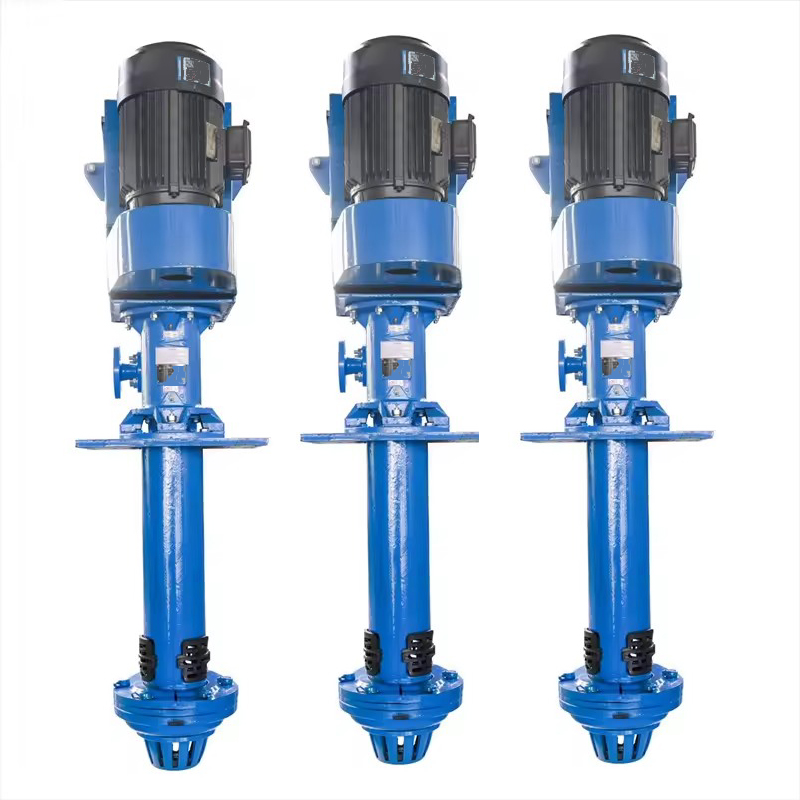

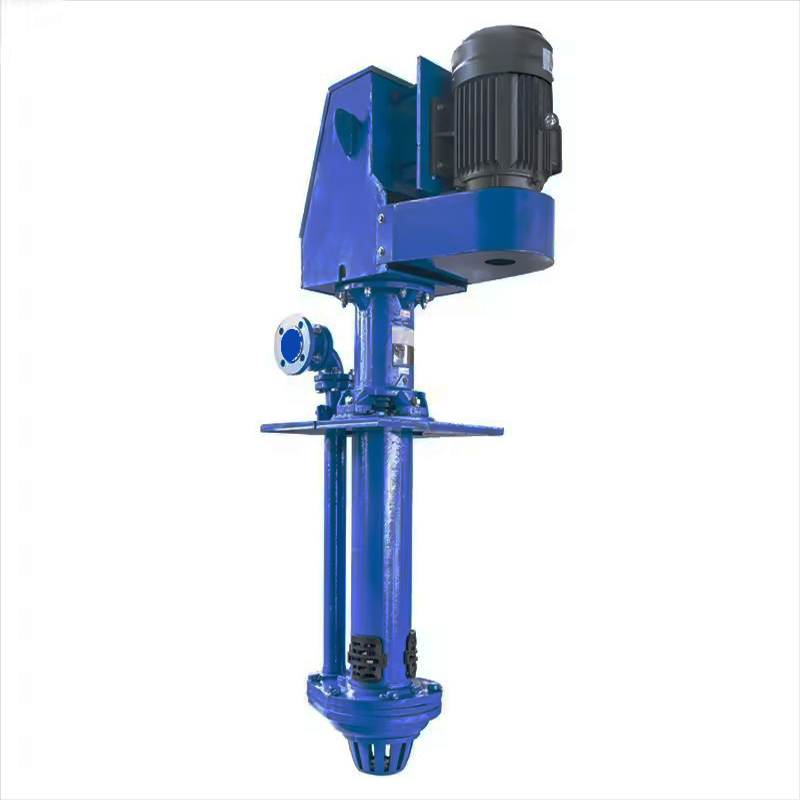

100VS(L)-RV Sump slurry pump
Shijiazhuang Heavy Pump Company Limited 8
Summary Description
1)Capacity: 54—289 m3/h
2)Head: 5—35 m
3)Flow parts materials: Cr26 alloy
4)Allowable mating Mac power: 75 kw
$1600.00
PRODUCT DETAILS
Product descriptionn
| 40VS(L)-QV | 65VS(L)-QV | 100VS(L)-QV | 150VS(L)-QV | 200VS(L)-QV | 300VS(L)-QV |
 |
 |
 |
 |
 |
 |
Type VS and VSR pumps are vertical , centrifugal slurry pumps submerged in sump to work . They are designed for delivering abrasive , large particle and high density slurries . These pumps have no need of any shaft seal and sealing water . They can also be operated normally for insufficient suction duties . Wet parts of type VS pump are made of abrasion - resistant metal . All parts of type VSR pump immersed in liquid are lined with rubber outer liner . They are suited to transport non - edge angle abrasive slurry . The type with " L " is a sump pump of extension shaft series , which is suited for the working condition of deeper level . The guide bearing construction is added to the pump on the basis of the standard pump , so the pump is with both more steady oper - ation and wider application range , but flushing water should be attached to the guide bearing .
Application area
Details Images
|
 |

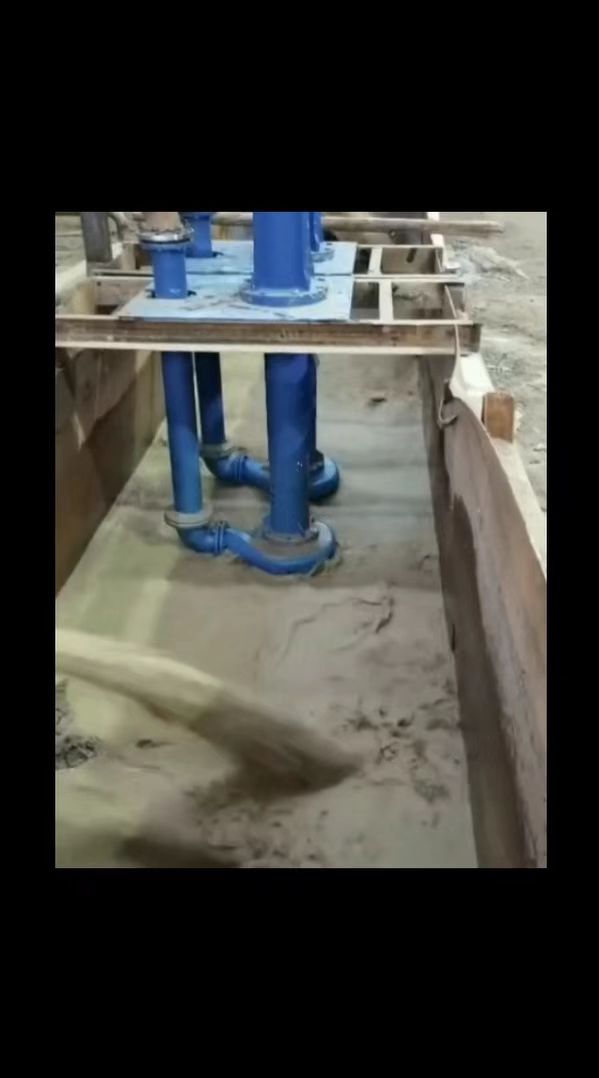

Work environment
 |
Features 1. High stength cast iron pump construction; 2. Impeller options are available to suit a range of applications and pumped products including single,double or triple vane; 3. 420 stainless steel shaft; 4. Built in cooling system allows operation when motor is submerged or above water level. |
Product Paramenters
| Pump Model | Material | Range of Performance | |||||
| Capacity(m³/h) | Head （m） | Speed(rpm) | Max.Eff(%) | Max Power(KW) | Impeller.Dia(mm) |
||
| 40VS(L)-QV | M | 19.44～43.2 | 4.5～28.5 | 1000～2200 | 40 |
15 |
188 |
| R40VS(L)-PV | R | 17.28～39.6 | 4～26 |
1000～2200 |
40 | ||
| 65VS(L)-QV | M | 23.4～111 | 5～29.5 | 700～1500 | 50 | 30 | 280 |
| R65VS(L)-QV | R | 22.5～105 |
5.5～30.5 |
700～1500 |
51 | ||
| 100VS(L)-RV | M | 54～289 | 5～35 | 500～1200 | 56 | 75 | 370 |
| R100VS(L)-RV | R | 64.8～285 |
7.5～36 |
600～1200 |
62 | ||
| 150VS(L)-SV | M | 108～479.16 | 8.5～40 | 500～1000 | 52 | 110 | 450 |
| 200VS(L)-SV |
M | 189～891 | 6.5～37 | 400～850 | 64 | 110 | 520 |
| 250VS(L)-TU |
M | 261～1089 | 7.5～33.5 | 400～750 | 60 | 200 | 575 |
| 300VS(L)-TU |
M | 288～1267 | 6.5～33 | 350～700 | 50 | 200 | 610 |
Types of accessories
Company Profile
Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.
| Heavy pump products in five series: | e)Frame plate: casting. |
| 1)Heavy horizontal slurry pump H series. | f)Packing seal: Mechanical seal or Gland seal. |
| 2)Heavy vertical slurry pump SP ( semi-submersible pump) | We can choose the pump material according to pump working condition. |
| 3)Heavy dredge pump G series | Heavy pump products advantage: |
| 4)Heavy gravel pump T series | 1)Anti-abraisive metal. |
| 5)Heavy submersible pump | 2)Module design which makes the spareparts can be changed freely. |
| Heavy Slurry Pump Material: | 3)Designed and built for long time with low maintenance. |
| a)Impeller: high-chromium alloy or rubber. | Heavy Pump Company to the Customers: |
| b)Volute liner: high-chromium alloy. | 1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it. |
| c)Shaft: 45# steel. | 2)Fast delivery at your requirement. |
| d)Shaft sleeve: ductile casting. |
Production workshop corner
Use of Site
Enterprise production certificate
Business license
Customs Union EAC
Certification CE certification
ISO 9001 certificate
Customer Visit Photos
Visit and purchase products from South African customers
Visit and purchase products from Korean customers
From Russian customers for inspection and procurement of products
Visit and purchase products from Malaysia customers
Packaging Transport Photos
Heavy pump with the unremitting pursuit of high quality and high performance and unlimited enthusiasm to innovate new products, with superb technology, strict quality control and excellent service, have won the favor of customers all over the world.
Heavy pump have been successfully exported to more than 100 countries around the world, so that the world has witnessed the charm of Made in China.
FAQ
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
