NCP40—250 Non-clogging centrifugal pump

Shijiazhuang Mainte Slurry Pump Co.,Ltd.

Summary Description

1)Capacity: 45 m3/h
2)Head: 87 m
3)Material: Cr26
4)Allowable mating Mac power: 30kw

$385.00

Sent order request Contact supplier

PRODUCT DETAILS

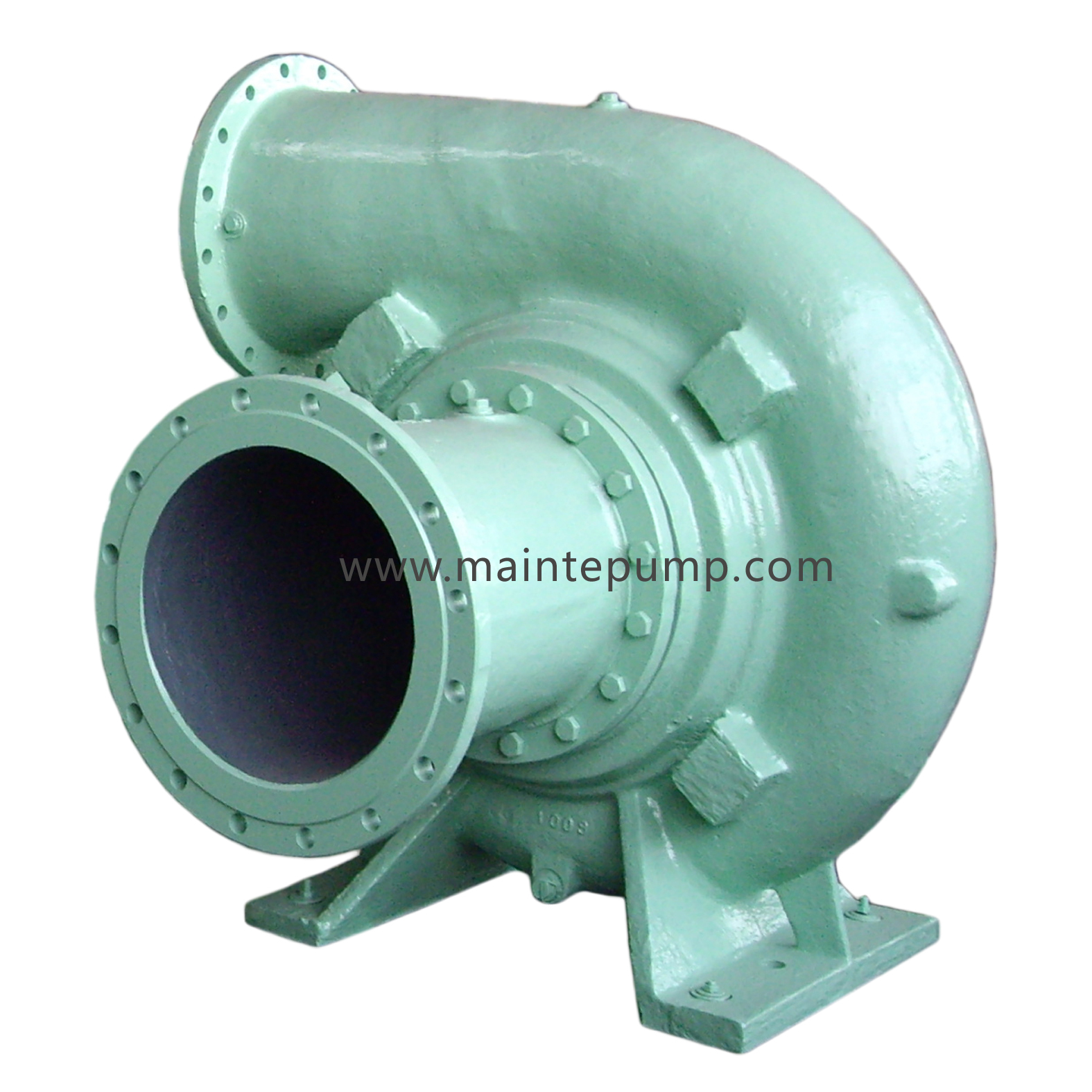

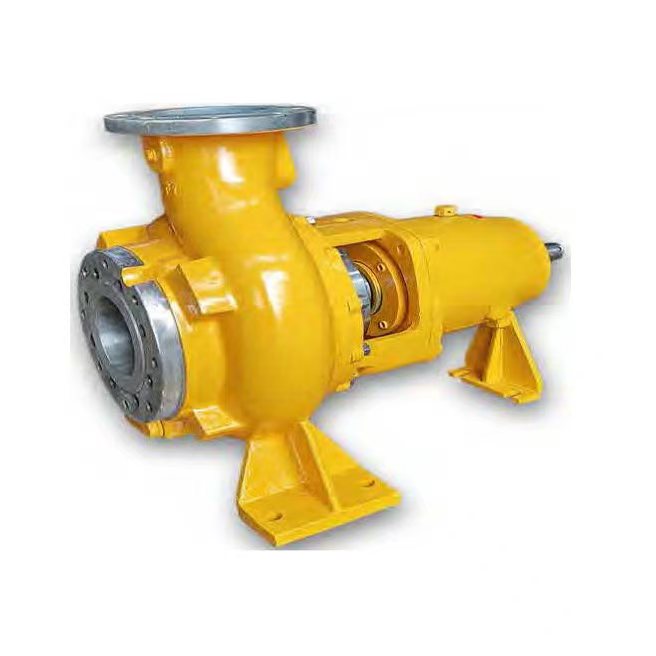

NCP Non - Clogging Single - Stage Centrifugal pump

Applications
NCP Non - clogging centrifugal pump is a solids handling pump for all kind of containing abrasive , long fiber , Coarse particles , rubber balls , waste water .
The pumps are widely used for papermaking , brewery , sugar industry , Fishery industry , kitchen treatment , sewage treatment , biogas engineering , chemical industry , environmental protection engineering and other industries .
Properties
Discharge diameter 40~500 mm
Flow 10~3800m3/h
Head 7~90m
Lubrication Oil
Rotating Clockwise

Type Notation
NCPF150-315
NCP Non - clogging centrifugal pump
F F - type impeller
150 Discharge dia .( mm )
315 Impeller dia .( mm )
Impeller
NCP pumps are supplied with four kinds of impeller for suction .
K impeller - Closed non - clogging impeller with Wide flow channel , For clear water , sewage , sewage mud and medium containing solid .
N impeller - Closed multi - vane impeller , For clear water , Pulp , sugar juice , oil wastewater and media containing solid suspension .
O impeller - Open impeller , Same application as N impeller but also including fluids containing gas .
F impeller - Vortex impeller , For handle large and long solids .( such as long fiber , sticky particles , paper pulp , rubber balls and so on ) and fluids containing air .

Shaft seals
There are three types of shaft seals for NCP pumps :
Packing seal
High temperature packing seal
Mechanical seal
Easy to service
It has the features of back pull - out design which can allowed the rotor to be removed form the pump casing without disturbing the pipe or dismantling the casing . To ensure that the pump could operate at a high efficient duty point , a front volute plate or an impeller ring installed on the pump casing , as result of which the service life of the pump casing and the impeller could be lengthened and the maintenance cost could be lowered as well .
Material

Pump parts	Paper making	Sea water	Acid medium	Sewage	Clear water
Pump casing	Stainless steel 304	Stainless steel 2205	Stainless steel 316L	Cast iron	Stainless steel 2Cr13
Impeller	Stainless steel 304	Stainless steel 2205	Stainless steel 316L	Carbon steel	Stainless steel 2Cr13
Shaft	Alloy steel 40Cr	Stainless steel 316L	Stainless steel 304	Alloy steel 40Cr	Alloy steel 40Cr
Shaft sleeve	Stainless steel 304	Stainless steel 2205	Stainless steel 316L	Stainless steel	Stainless steel 2Cr13

Product cases

www.maintepump.com
SHIJIAZHUANG MAINTE SLURRY PUMP CO ., LTD
Add : No .176 Hua ï' an East Road , Yuhua District , Shijiazhuang City , Hebei Province , China
Tel :+86-311-83078105
Phone :+86-1863015 1866
Fax :+86-311-67592920
E - mail :guo@maintepump.cn
E - mail :sbjtghw@163.com
Website : Http //www.maintepump.com

NCP Non - clogging Pump Working Cases
NCP non - clogging pump are specially used for the paper - making , chemicals , rubber making , sugar industrial ,food , breweries , fishing , sewage treatment .

Enterprise production certificate

Business license
Customs Union EAC
Certification CE certification
ISO 9001 certificate

Customer Visit Photos

Visit and purchase products from South African customers
Visit and purchase products from Korean customers
From Russian customers for inspection and procurement of products
Visit and purchase products from Malaysia customers

Packaging Transport Photos

FAQ

Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
