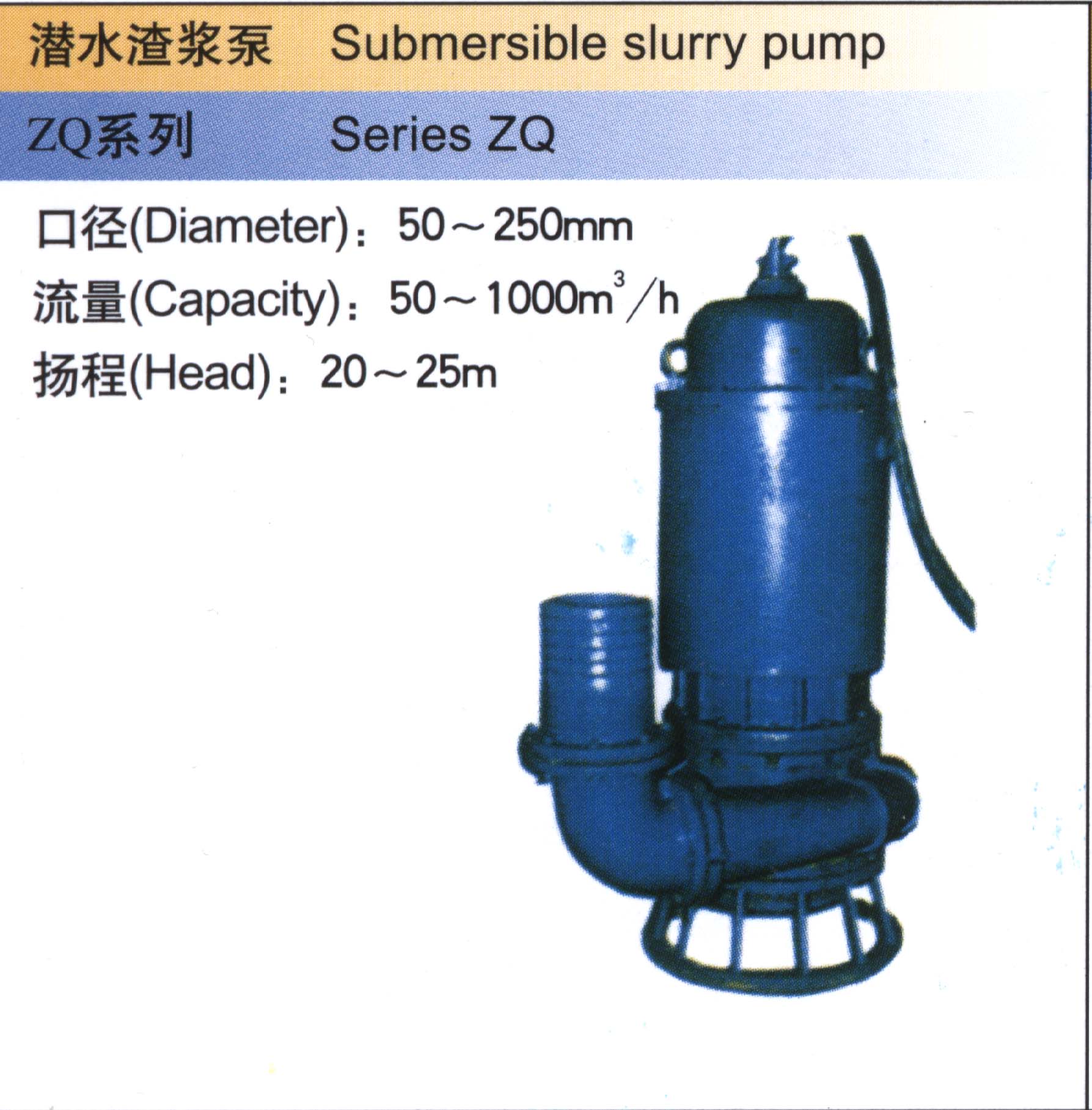

150ZQ-25 submersible slurry pump
Shijiazhuang Heavy Pump Company Limited 1
Summary Description
1)Capacity: 216—432 m3/h
2)Head: 27.0—23.5m
3)Flow parts materials: Cr26 alloy
4)Allowable mating Mac power: 55 kw
$5000.00
PRODUCT DETAILS
Product descriptionn
| 50ZQ-20 | 80ZQ-25 | 100ZQ-25 | 150ZQ-25 | 200ZQ-20 | 250ZQ-25 |
 |
 |
 |
 |
 |
 |
A submersible slurry pump is a pump used to transport liquids containing solid particles.
I. Working Principles
Submersible slurry pump through the motor driven impeller rotation, producing centrifugal force, the liquid and solid particles together into the pump body, and then through the pressure to discharge it.
II. Features
1. Strong wear resistance: able to withstand the wear of solid particles, suitable for conveying media containing gravel, ore and other solid particles.
2. Good waterproof performance: it can work in underwater or humid environment, and the motor and pump body are well sealed to prevent water from entering.
3. Easy installation: no need to build a pump room, can be installed directly in the pool or puddle, saving space and cost.
4. Stable operation: the use of advanced design and manufacturing technology, smooth operation, low noise.
III. APPLICATION AREAS
1. Mining industry: for conveying pulp, tailings, etc.
2. Sewage treatment: treatment of sewage containing sludge, waste residue, etc.
3. Construction works: conveying mud, sand and stones at construction sites.
4. River dredging: to clean up the sediment and debris in the river.

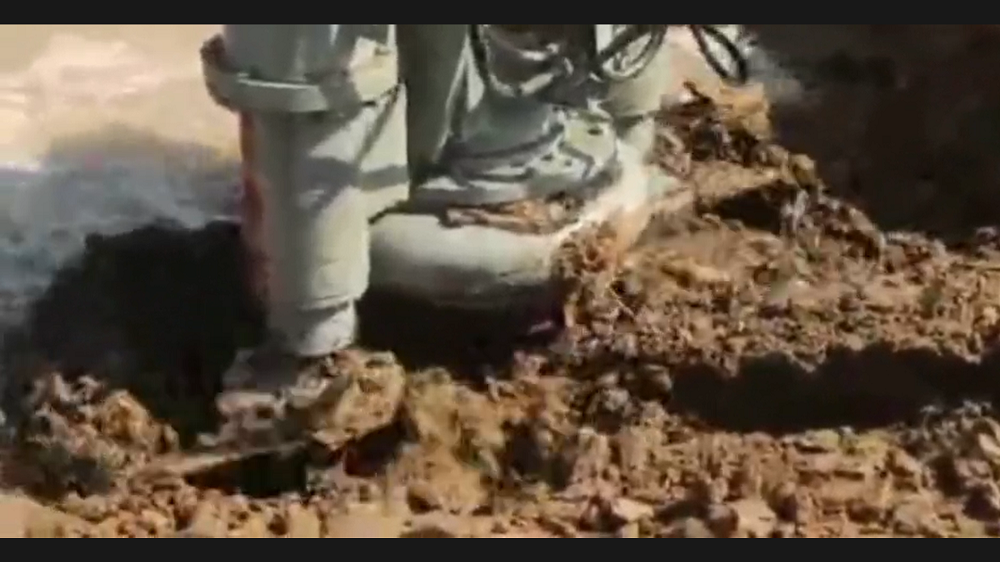

Application area
Details Images
|
 |
Product Paramenters
| Pump Model | Range of Performance | |||||
| Capacity(m³/h) | Head （m） | Speed(rpm) | Max.Eff(%) | Power(KW) | Weight w(kg) |
|
| 50ZQ-20 | 30/50/60 | 20.5/20.5/19.5 | 1440 | 40/53/50 | 7.5 | 780 |
| 80ZQ-25 |
60/100/120 | 27.0/25.0/24.0 | 1470 | 48/60/57 | 22 | 1000 |
| 100ZQ-25 |
114/190/228 | 27.0/25.0/24.0 | 980 | 50/62/60 | 37 | 1500 |
| 150ZQ-25 |
216/360/432 | 27.0/25.0/23.5 | 980 | 55/68/66 | 55 | 2000 |
| 200ZQ-20 |
258/430/516 |
23.8/20.0/17.5 | 980 | 57/70/66 | 55 | 2000 |
| 250ZQ-25 |
600/1000/1200 |
26.5/25.0/24.0 | 740 | 62/75/72 | 132 | 4000 |

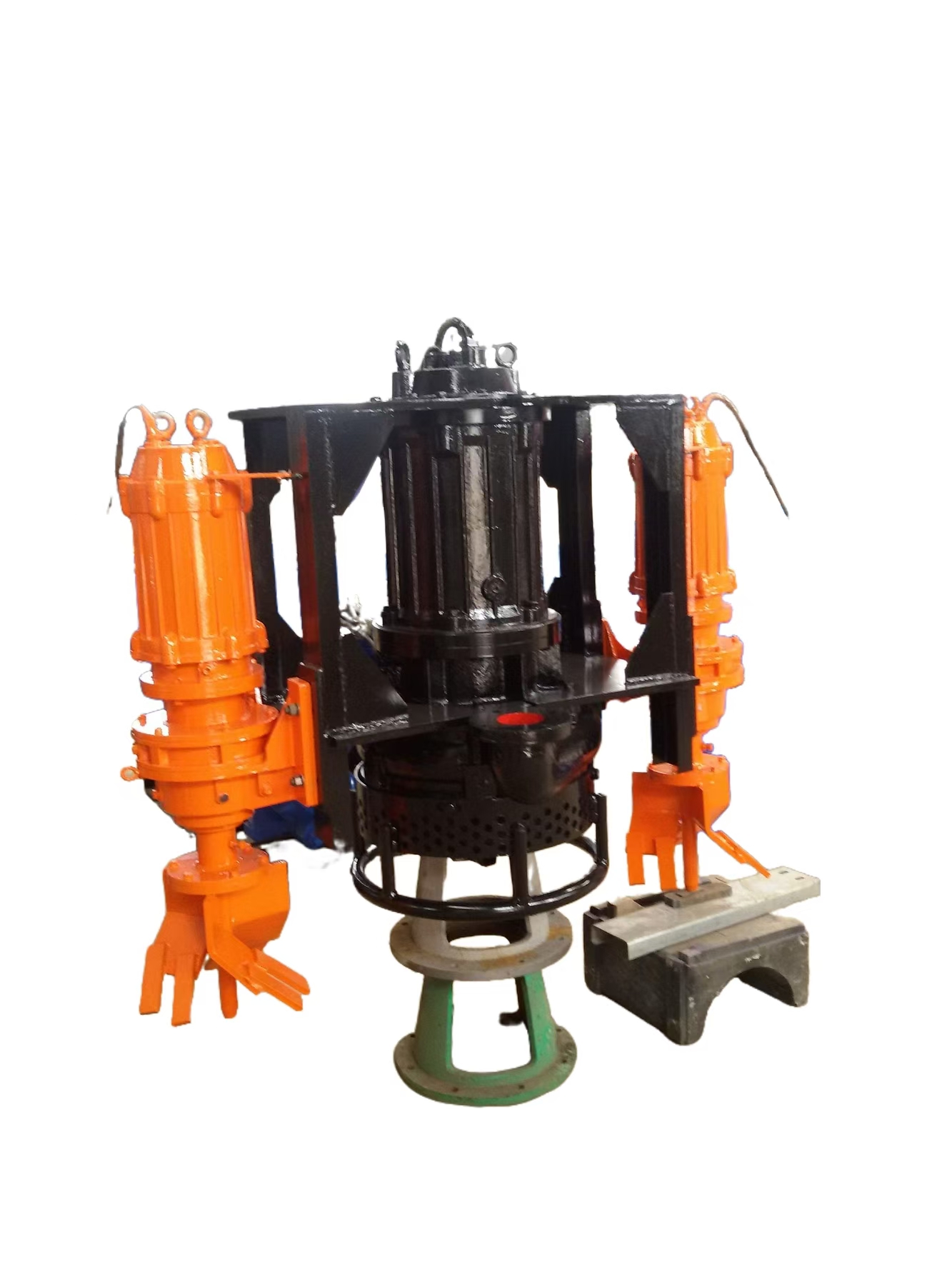

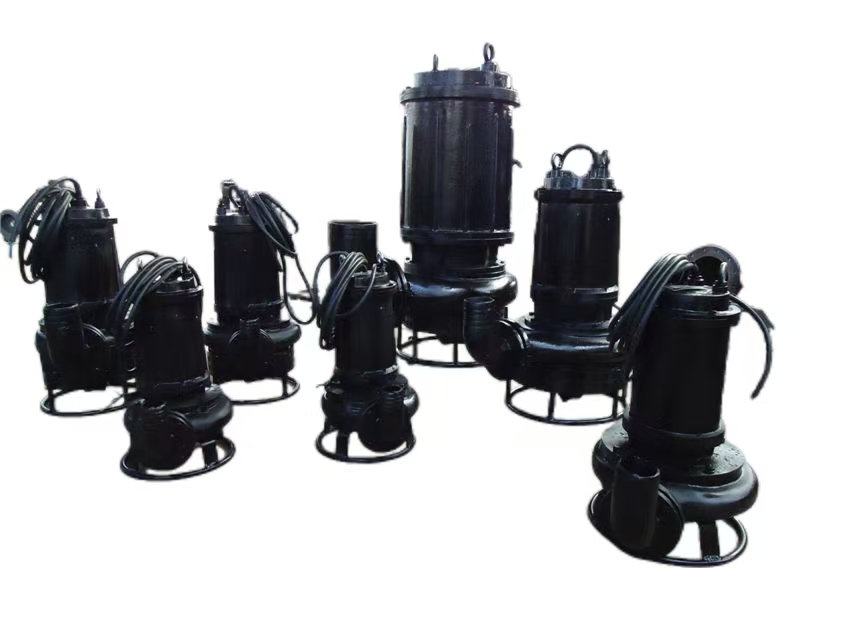

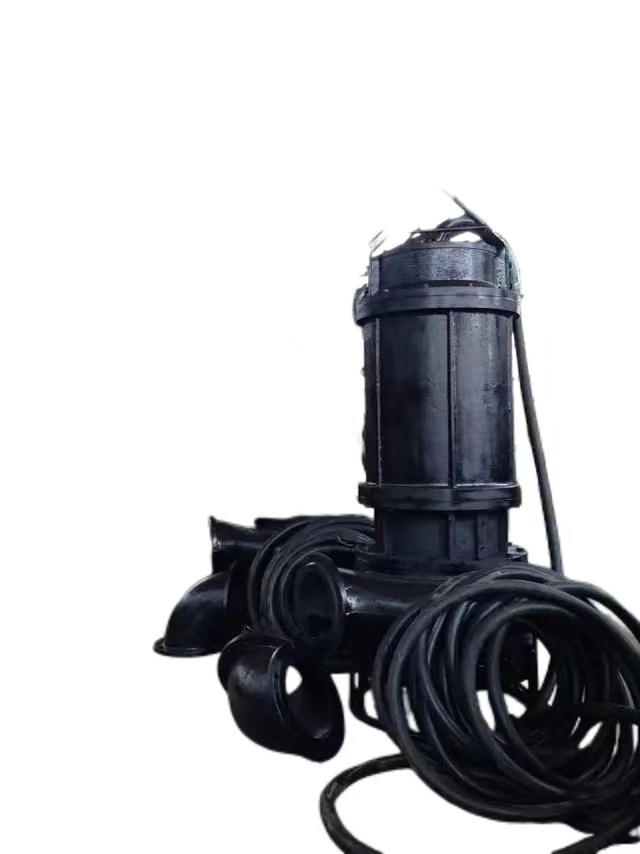

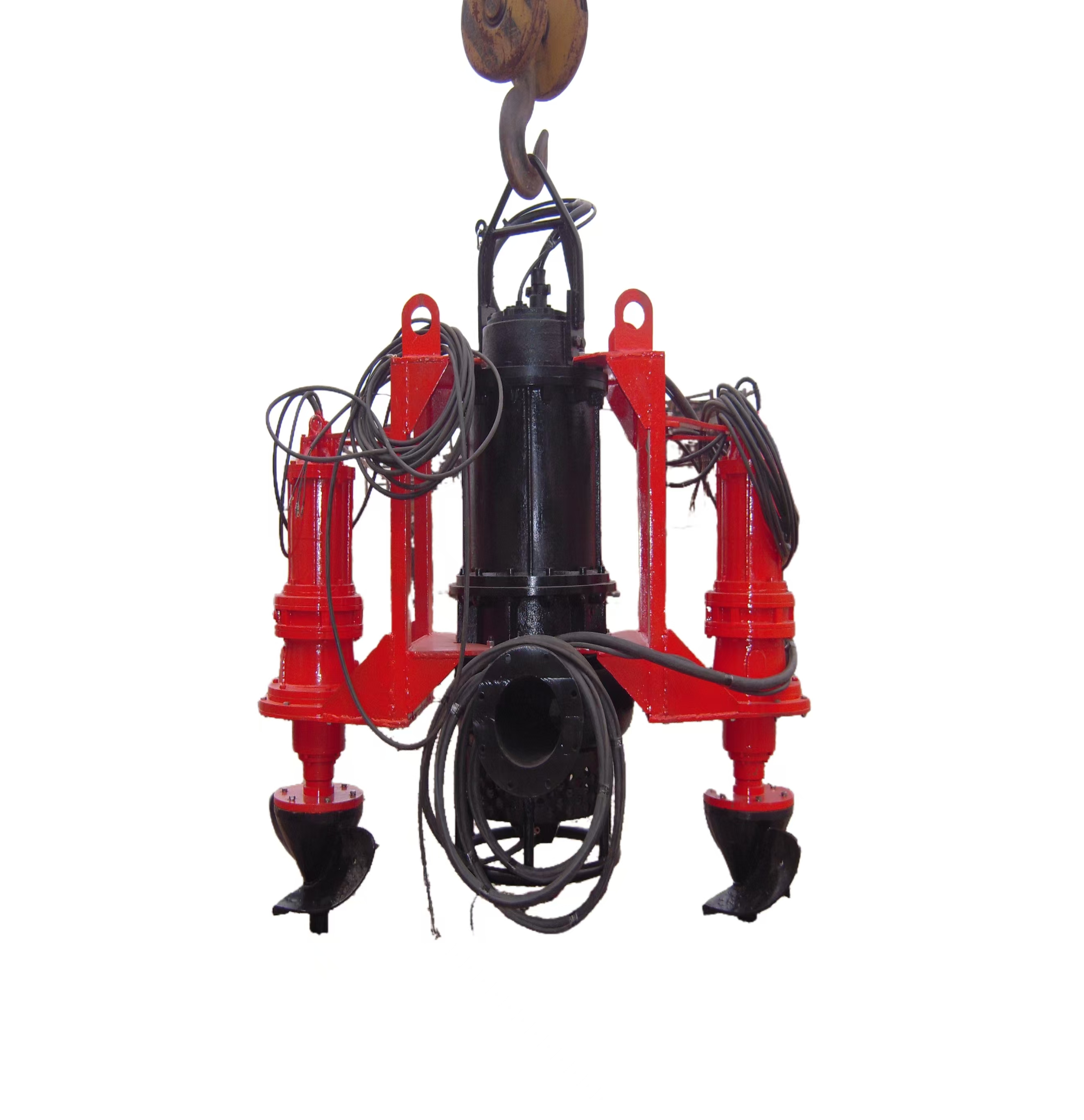

Types of accessories
Company Profile
Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.
| Heavy pump products in five series: | e)Frame plate: casting. |
| 1)Heavy horizontal slurry pump H series. | f)Packing seal: Mechanical seal or Gland seal. |
| 2)Heavy vertical slurry pump SP ( semi-submersible pump) | We can choose the pump material according to pump working condition. |
| 3)Heavy dredge pump G series | Heavy pump products advantage: |
| 4)Heavy gravel pump T series | 1)Anti-abraisive metal. |
| 5)Heavy submersible pump | 2)Module design which makes the spareparts can be changed freely. |
| Heavy Slurry Pump Material: | 3)Designed and built for long time with low maintenance. |
| a)Impeller: high-chromium alloy or rubber. | Heavy Pump Company to the Customers: |
| b)Volute liner: high-chromium alloy. | 1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it. |
| c)Shaft: 45# steel. | 2)Fast delivery at your requirement. |
| d)Shaft sleeve: ductile casting. |
Production workshop corner
Use of Site
Enterprise production certificate
Business license
Customs Union EAC
Certification CE certification
ISO 9001 certificate
Customer Visit Photos
Visit and purchase products from South African customers
Visit and purchase products from Korean customers
From Russian customers for inspection and procurement of products
Visit and purchase products from Malaysia customers
Packaging Transport Photos
Heavy pump with the unremitting pursuit of high quality and high performance and unlimited enthusiasm to innovate new products, with superb technology, strict quality control and excellent service, have won the favor of customers all over the world.
Heavy pump have been successfully exported to more than 100 countries around the world, so that the world has witnessed the charm of Made in China.
FAQ
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
