200MS-E Slurry Pump
Shijiazhuang Mainte Slurry Pump Co.,Ltd.
Summary Description
1)Capacity: 666—1440m³/h
2)Head: 14—60 m
3)Flow parts materials: Cr26 alloy
4)Allowable mating Mac power: 120 kw
$4033.00
PRODUCT DETAILS
| Product description |
 |
 |
| Type MS, HS, and HHS pumps are cantilevered, horizontal, centrifugal slurry pumps. They are designed for handing abrasive, high slurries in the metallurgical, mining, coal, power, building material and other industrial departments etc. The pumps of this type also may be installed in multistage series. The frame plates for type MS, HS pumps such as interchangeable, hard metal or pressure moulded elastomer liners. The impellers are made of hard metal or pressure moulded elastomer liners. The frame plate liner and impeller for HHS pump are adoptable of hard metal only. The shaft seals for type MS, HS, and HHS pumps may be adoptable of gland seal or centrifugal shaft seal. The discharge branch can be positioned at intervals of 45 degrees by request and oriented to any eight positions to suit installations and applications. USAGE AND FEATURES Advanced hydraulic model, CAD three-dimensional design, high efficiency, significant energy saving, large deepening, high concentrations dredging, cavitation performance, super suction and over-flow capability, continuously pumping gravel and high mould clay block. It can be equipped with diesel engines or be equipped with motor driven directly. It has the advantages of working stability, little vibration, low noise and low hydraulic loss, high efficiency, low fuel consumption and small size, light weight, simple structure, easy maintenance. |
|
 |
 |

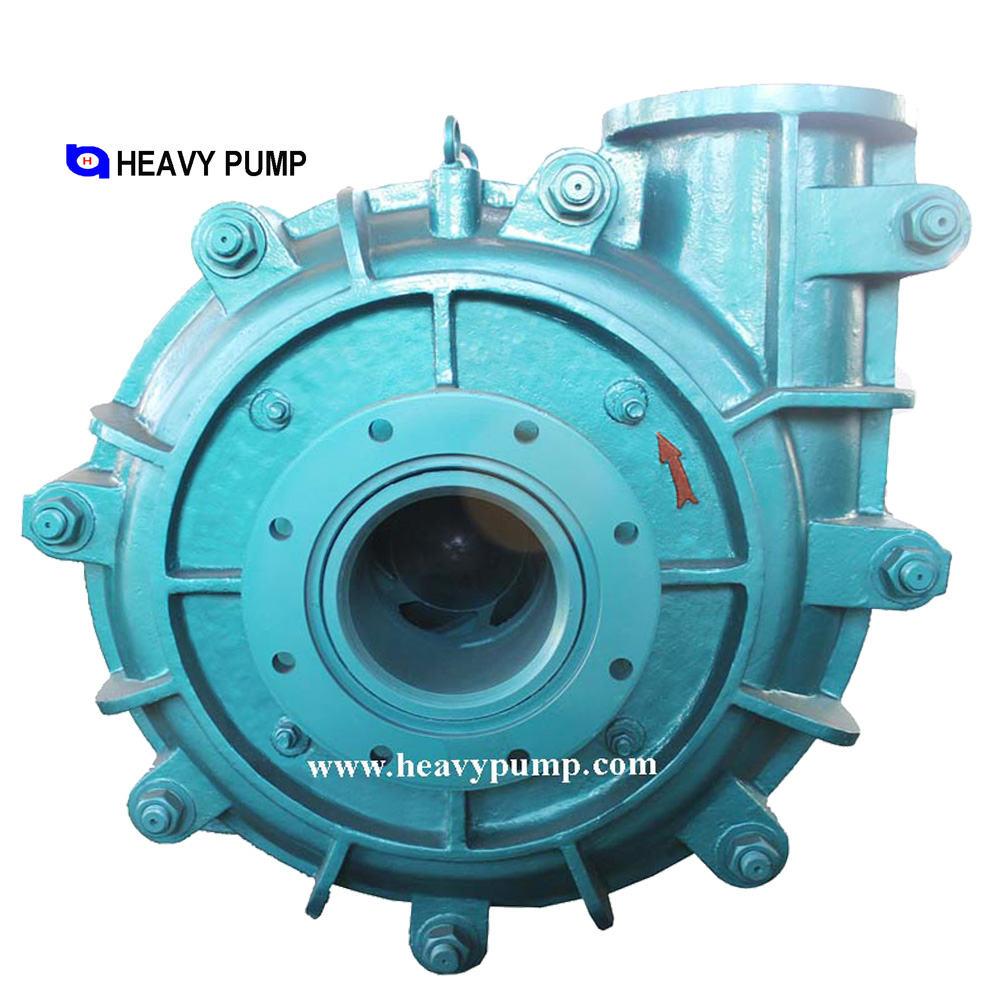

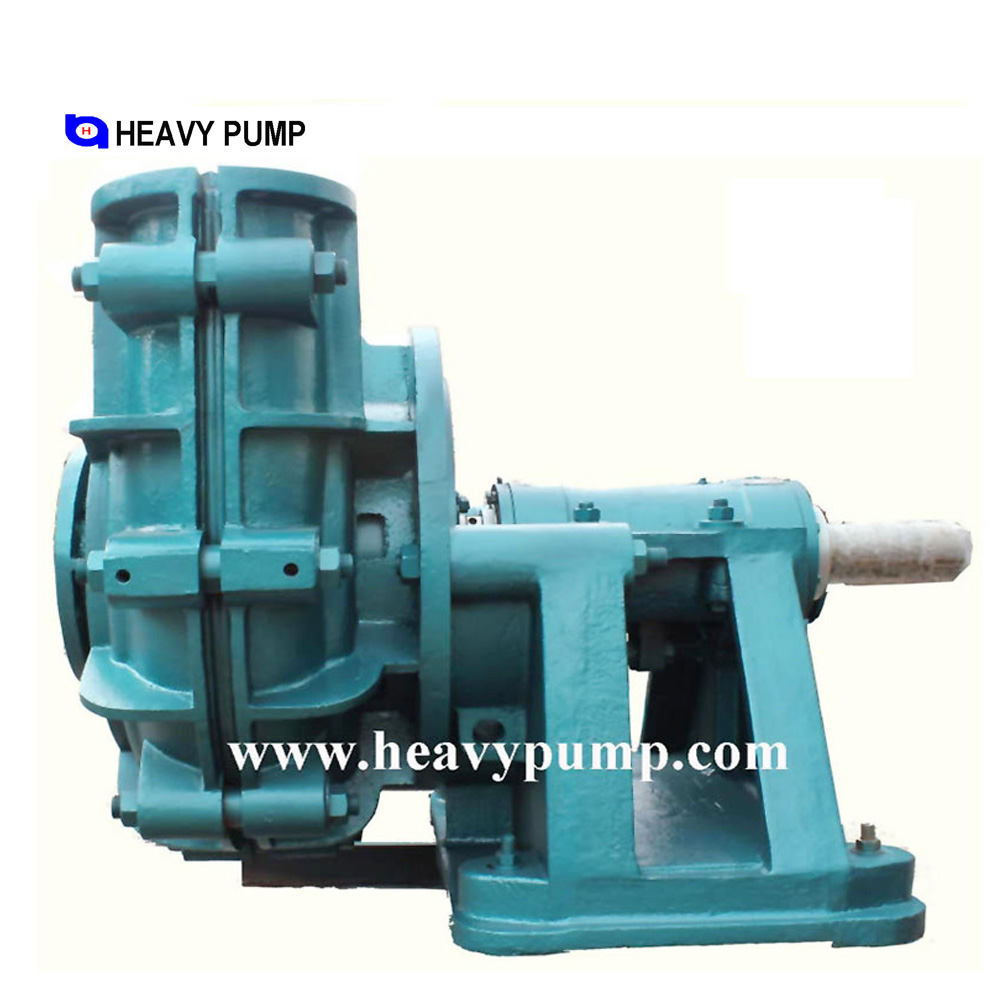

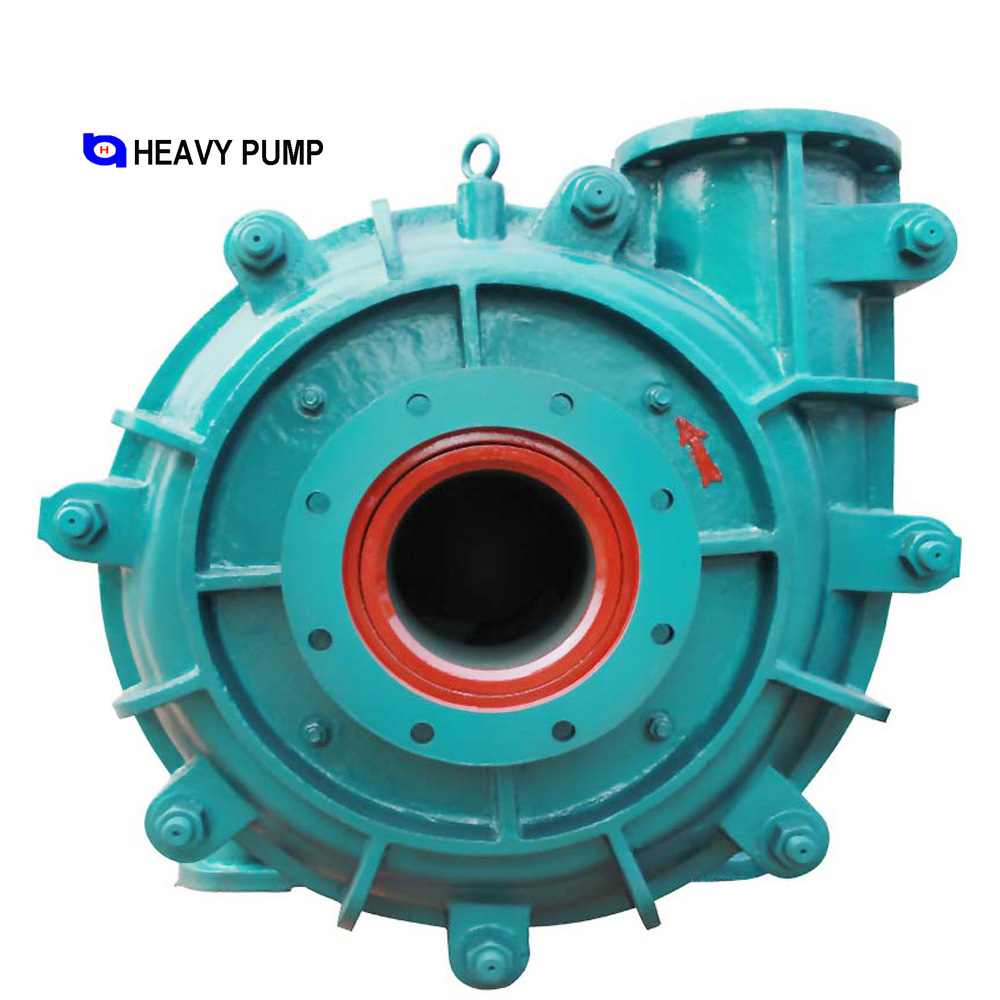

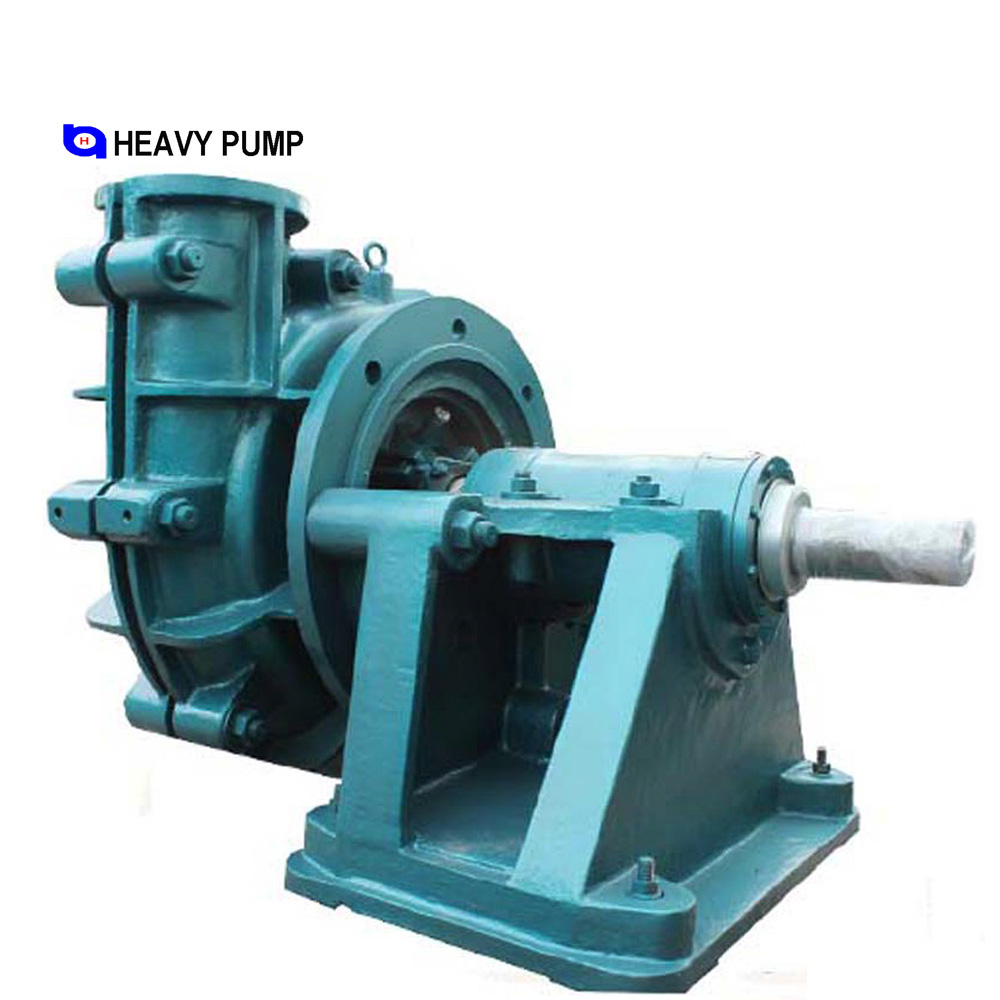

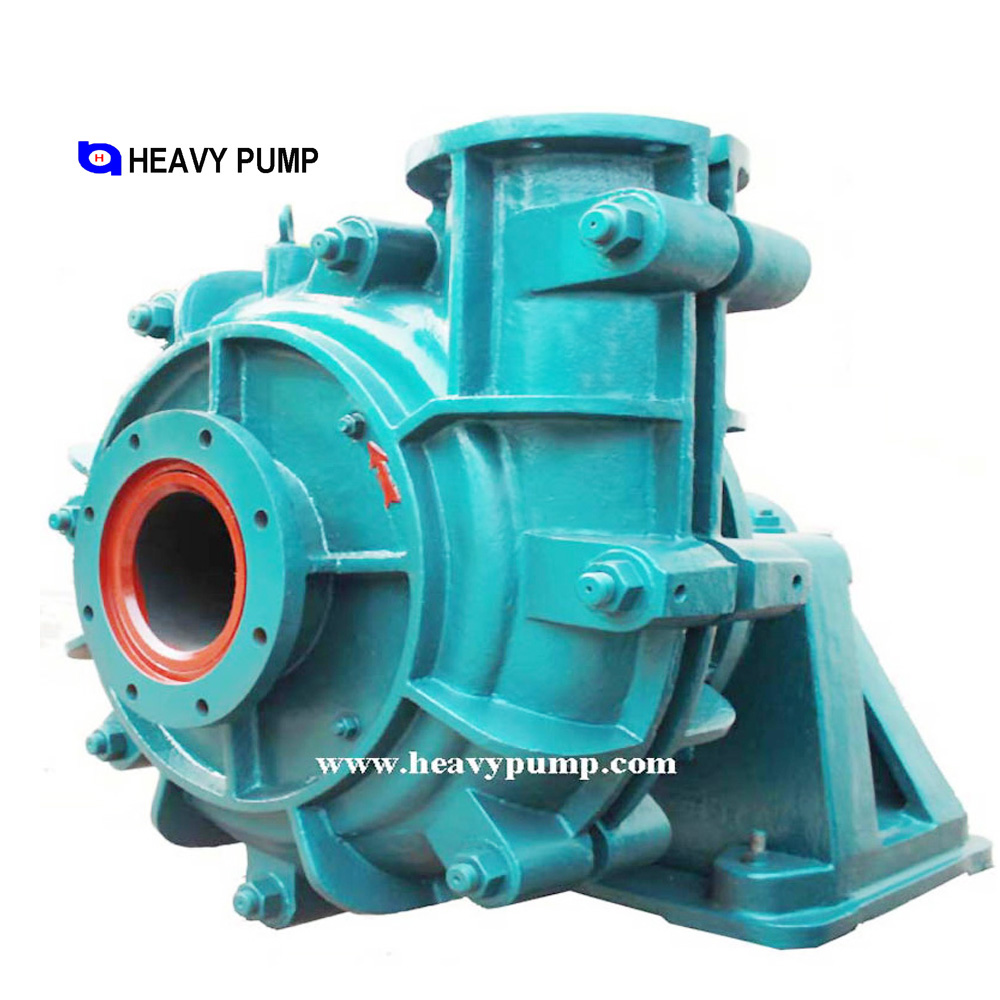

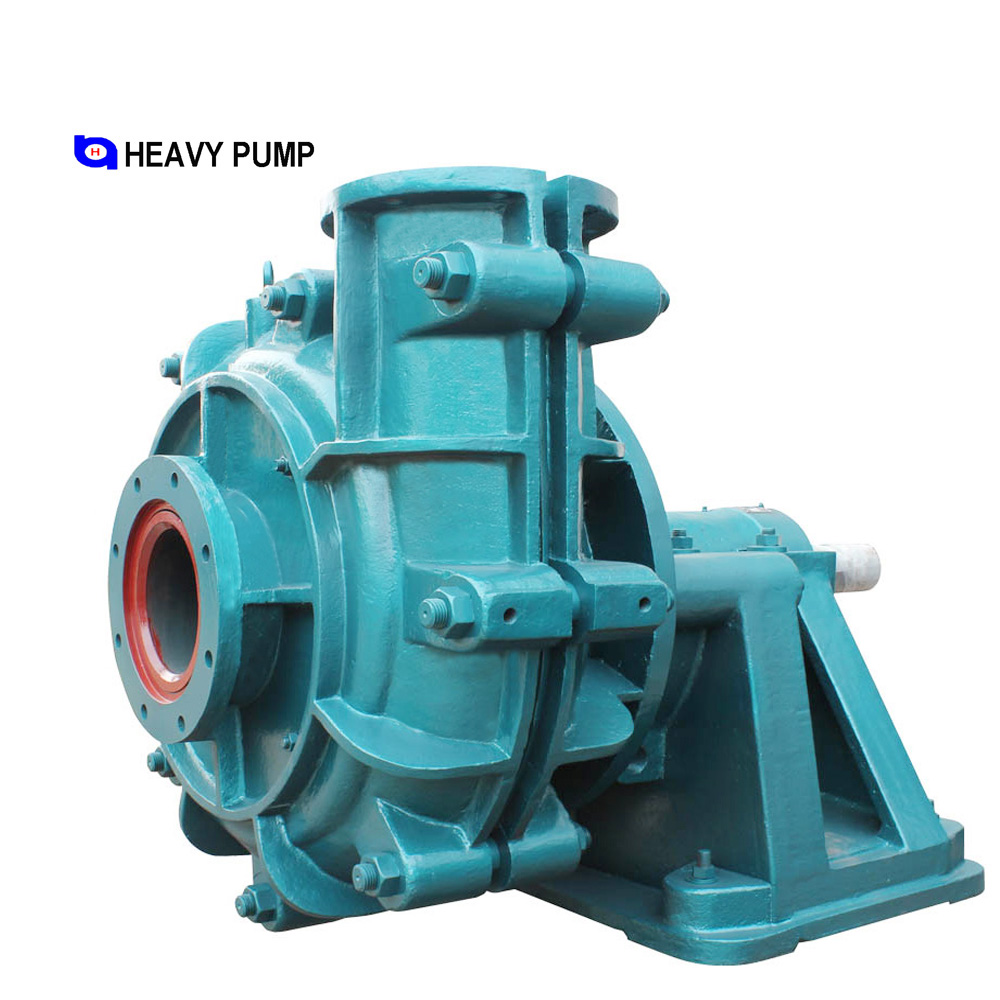

| Details Images |
| Work environment |
| Product Paramenters |
| Pump Model | Performance | ||||
| Capacity(m³/h) | Head （m） | Speed(rpm) | Max Power(KW) | NPSH(m) | |
| 25HS-B | 12.6～28.8 | 6～68 | 1200～3800 | 15 | 2-4 |
| 25HHS-C | 16.2～34.2 | 25～92 | 1400～2200 | 30 | 2-5 |
| 40HS-B | 32.4～72 | 6～58 | 1200～3200 | 15 | 3-8 |
| 50HS-C | 39.6～86.4 | 12～64 | 1300～2700 | 30 | 4-6 |
| 50HHS-D | 68.4～136.8 | 25～87 | 850～1400 | 60 | 3-7 |
| 75HS-C | 86.4～198 | 9～52 | 1000～2200 | 30 | 4-6 |
| 75HHS-E | 126～252 | 12～97 | 600～1400 | 120 | 2-5 |
| 100HS-D | 162～360 | 12～56 | 800～1550 | 60 | 5-8 |
| 100HHS-S |
324～720 | 30～118 | 600～1000 | 560 | 3-8 |
| 150HHS-S-A |
468～1008 | 20～94 | 500～1000 | 560 | 4-9 |
| 150HS-R |
360～828 | 10～61 | 500～1140 | 300 | 2-9 |
| 200MS-E |
666～1440 | 14～60 | 600～1100 | 120 | 2-8 |
| 200HS-ST |
612～1368 | 11～61 | 400～850 | 560 | 2-8 |
| 250HS-ST |
936～1980 | 7～68 | 300～800 | 560 | 2-8 |
| 300HS-TU |
1260～2772 | 13～63 | 300～600 | 560 | 3-9 |
| 350HS-TU |
1368～3060 | 11～63 | 250～550 | 1200 | 3-8 |
| 450HS-TU |
2520～5400 | 13～57 | 200～400 | 1200 | 5-9 |
| Working principle |
 |
| Types of accessories |
| Company Profile |
|
Shijiazhuang mainte slurry pump Co., Ltd. Is a scientific and technological innovative pump production supplier integrating R & D, production, marketing and service of desulfurization pump, slurry pump, dredging pump, sewage pump, non blocking centrifugal pump, submersible slurry pump, clean water pump and other products. The company has strong technical production capacity and perfect service system. |
 |
 |
|
 |
 |
| Production workshop corner |
| Use of Site |
| Enterprise production certificate |
| Customer Visit Photos |
| Packaging Transport Photos |
| FAQ |
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
