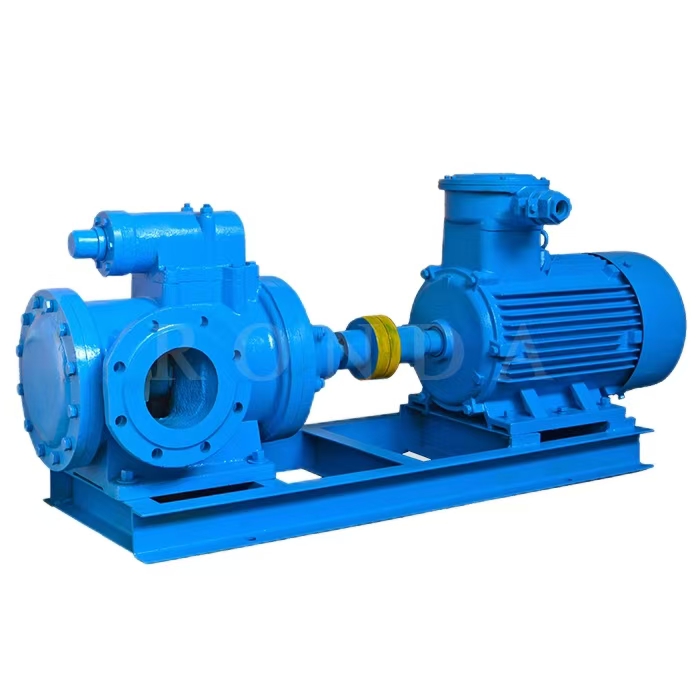

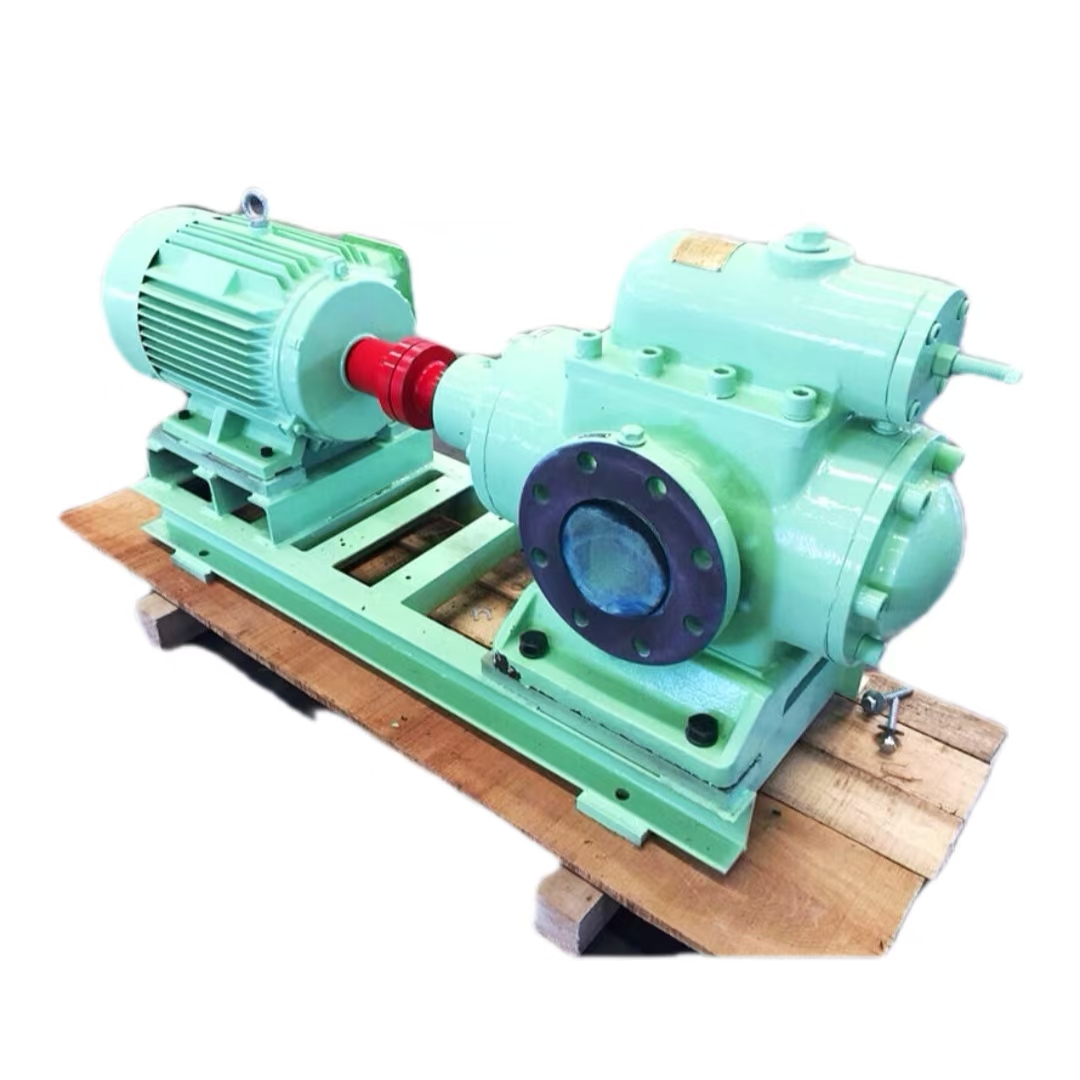

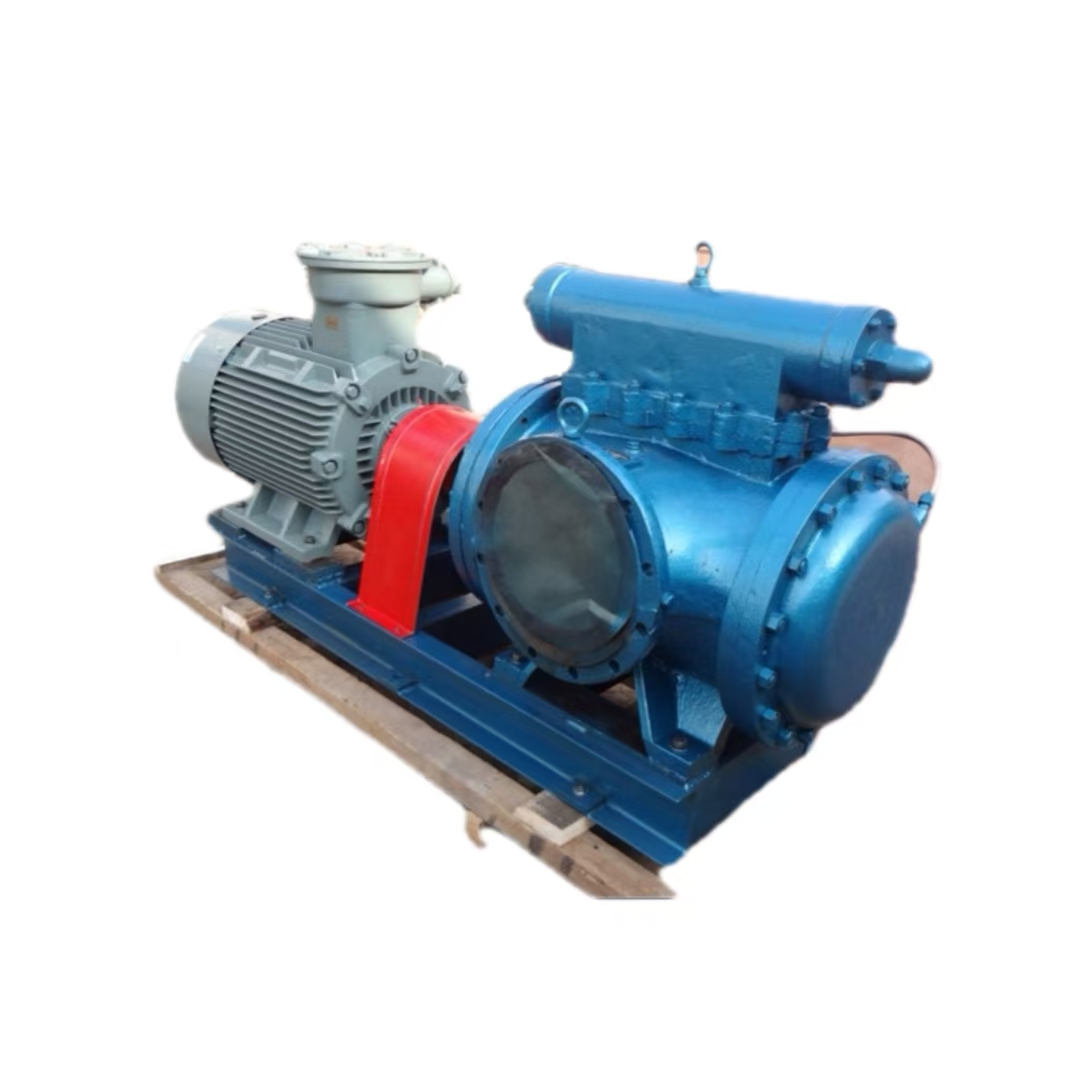

30×4-46 Three Screw Pump
Shijiazhuang Heavy Pump Company Limited 1
Summary Description
1)Capacity: 3.6 m3/h
2)Head: 60.0 L/min
3)Allowable mating Mac power: 4.0 kw
$1000.00
PRODUCT DETAILS
Key attributes
 |

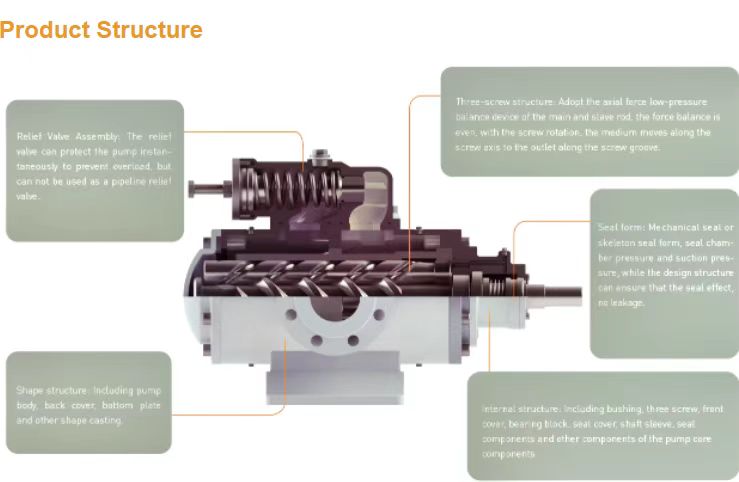

Three Screw pump is a positive displacement rotor pump, mainly rely on the pump body and screw formed between the meshing space volume changes and movement to transport liquid or liquid pressurization.
|
Industry - specific attributes
| Application | Automotive Industry, Biofuel Industry, Developing World Water Solutions, Food and Beverage Industry, Industrial Utilities, Mining industry, Pharmaceutical industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions, Other |
| Pressure | High Pressure |
| Voltage |
380/400/440/660 |
Other attributes
| Customized support | OEM , ODM |
| Place of Origin | Hebei, China |
| Power Source | Electric |
| Structure | SCREW PUMP |
| Warranty | 1 year |
| Brand Name | heavy pump |
| Model Number | G25-1 |
| Outlet Size | 15-250mm |
| Power | 0.55-55KW |
Lead time
| Quantity ( sets ) | 1-1 | 2-10 | >10 |
| Lead time ( days ) | 1 | 2 | To be negotiated |
Pump parameters
| Pump Specifications | Discharge pressure（MPa） |
Flow | Speed （nr/min） |
Cavitation allowance （rm） |
efficiency |
Power |
|
| m³/h | L/min | ||||||
| 25×4-46 | 1.0 | 2.0 | 33 | 2900 | 4.5 | 59.4 | 1.5 |
| 30×4-46 | 1.0 | 3.6 | 60 | 2900 | 5 | 60.0 | 2.2 |
| 36×4-46 | 1.0 | 6.5 | 108 | 2900 | 5 | 60.5 | 4.0 |
| 42×4-46 | 1.0 | 10.5 | 175 | 2900 | 5.5 | 61.0 | 5.5 |
| 45×4-46 | 1.0 | 13.5 | 225 | 2900 | 5.5 | 60.0 | 7.5 |
| 60×4-46 | 1.0 | 32.0 | 533 | 2900 | 5.5 | 63.0 | 18.5 |
| 70×4-46 | 1.0 | 24.5 | 408 | 2900 | 5 | 72.5 | 15.0 |
| 80×4-46 | 2.5 | 37.0 | 617 | 2900 | 5.5 | 78.1 | 37.0 |
| 100×4-46 | 1.0 | 72.5 | 1208 | 2900 | 5.5 | 73.0 | 30.0 |
| 110×4-46 | 2.5 | 90.0 | 1500 | 2900 | 5.5 | 78.5 | 75.0 |
 Shijiazhuang Heavy Pump Company Limited |
||
| Customized logo | Customized packaging | Graphic customization |
| Min. order: 5 set | Min. order: 5 set | Min. order: 5 set |
|
Flow rate required according to the viscosity of the medium Select different types of motors |
|
| STANDARD MOTOR 1. 960 rpm fixed speed motor 2. 6 or 8 stages of motor 3. not inverter use |
SPEED REDUCING MOTOR 1.Customizable speed 2. Can be carried out by frequency converter 3.Adjust Hertz and speed control at the same time |
| INFINITELY VARIABLE SPEED MOTOR 1. can be fixed speed adjustment 2. practical and low failure rate Ming 3. at any time to monitor the specific speed |
INVERTER MOTOR 1. Low failure rate , high torque 2.High viscosity liquid needs reducer 3.Fixed speed |
| Flow rate required according to the viscosity of the medium Select different types of motors |
|||
| Nitrile rubber Oil resistance is good , corrosion resistance is general , compatibility is strong , high abrasion of liquid fluid media . |
Ternary ethylene propylene High temperature resistance , abrasion resistance , general corrosion resistance ,suitable for high temperature , high abrasion liquid fluid |
Fluoroelastomer |
Silicone |
Company Profile
Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.
| Heavy pump products in five series: | We can choose the pump material according to pump working condition. |
| 1)Heavy horizontal slurry pump H series. | f)Packing seal: Mechanical seal or Gland seal. |
| 2)Heavy vertical slurry pump SP ( semi-submersible pump) | e)Frame plate: casting. |
| 3)Heavy dredge pump G series | Heavy pump products advantage: |
| 4)Heavy gravel pump T series | 1)Anti-abraisive metal. |
| 5)Heavy submersible pump | 2)Module design which makes the spareparts can be changed freely. |
| Heavy Slurry Pump Material: | 3)Designed and built for long time with low maintenance. |
| a)Impeller: high-chromium alloy or rubber. | Heavy Pump Company to the Customers: |
| b)Volute liner: high-chromium alloy. | 1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it. |
| c)Shaft: 45# steel. | 2)Fast delivery at your requirement. |
| d)Shaft sleeve: ductile casting. |
Enterprise production certificate
| Business license Customs Union EAC Certification CE certification ISO 9001 certificate |
Customer Visit Photos
| Visit and purchase products from South African customers Visit and purchase products from Korean customers From Russian customers for inspection and procurement of products Visit and purchase products from Malaysia customers |
Packaging Transport Photos
| Heavy pump with the unremitting pursuit of high quality and high performance and unlimited enthusiasm to innovate new products, with superb technology, strict quality control and excellent service, have won the favor of customers all over the world. Heavy pump have been successfully exported to more than 100 countries around the world, so that the world has witnessed the charm of Made in China. |
FAQ
| Q: How can I make order online? A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order. Q: Do you have MOQ limit? A: The MOQ is 1 set. Q: Which payments are acceptable? A: T/T, L/C, Western Union, Paypal. Q: Which shipping terms are available? A: By sea, air, Express. Q: How about the delivery time? A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity. Q: What's your warranties? A: 1 year after delivery. Q: Can I buy parts separately? A: Yes, all of the pump spare parts can buy separately. |
