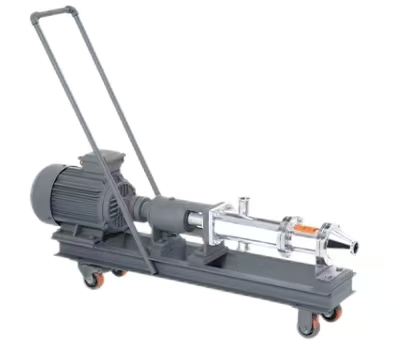

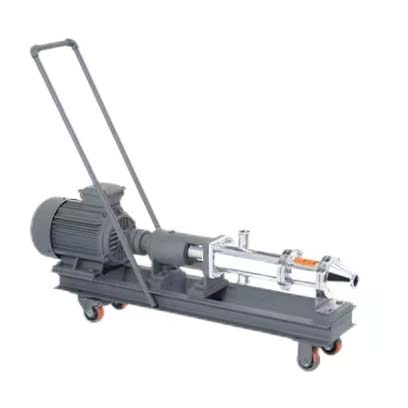

80-46 Single screw pump

Shijiazhuang Heavy Pump Company Limited 1

Summary Description

1)speed:2900 r/min
2)Kinematic viscosity: 760
3)NPSH: 2.5 rm
4)Flow parts materials: stainless steel

$1000.00

Sent order request Contact supplier

PRODUCT DETAILS

Key attributes

Single Screw pump is a positive displacement rotor pump, mainly rely on the pump body and screw formed between the meshing space volume changes and movement to transport liquid or liquid pressurization.

Industry - specific attributes

Application	Automotive Industry, Biofuel Industry, Developing World Water Solutions, Food and Beverage Industry, Industrial Utilities, Mining industry, Pharmaceutical industry, Washing and Cleaning, Wastewater Transport and Flood Control, wastewater treatment, Water Treatment Solutions, Other
Pressure	High Pressure
Voltage	380/400/440/660

Other attributes

Customized support	OEM , ODM
Place of Origin	Hebei, China
Power Source	Electric
Structure	SCREW PUMP
Warranty	1 year
Brand Name	heavy pump
Model Number	G25-1
Outlet Size	15-250mm
Power	0.55-55KW

Lead time

Quantity ( sets )	1-1	2-10	>10
Lead time ( days )	1	2	To be negotiated

pump parts

Pump Specifications	speed(r/min)
	950			1450			2900
	Kinematic viscosity
	3	12	20	40	75	150	380	760	3
	NPSH(rm)
40-46	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
80-46	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
120-46	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
210-46	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.5
280-46	2.5	2.5	2.5	2.5	2.5	2.5	2.5	2.7	2.5
440-46	2.5	2.5	2.5	2.5	2.5	2.5	2.7	3.0	2.5
660-46	2.5	2.5	2.5	2.5	2.5	2.6	2.9	3.3	2.6
940-46	2.5	2.5	2.5	2.5	2.6	2.8	2.2	3.7	2.9
1300-46	2.5	2.5	2.5	2.5	2.7	3.0	3.5	4.1	3.3
1700-46	2.5	2.5	2.5	2.7	3.1	3.4	4.1	4.7	3.6
2200-46	2.6	2.6	2.6	3.0	3.4	3.9	4.5	5.3	4.4

Customization

Shijiazhuang Heavy Pump Company Limited
Customized logo	Customized packaging	Graphic customization
Min. order: 5 set	Min. order: 5 set	Min. order: 5 set

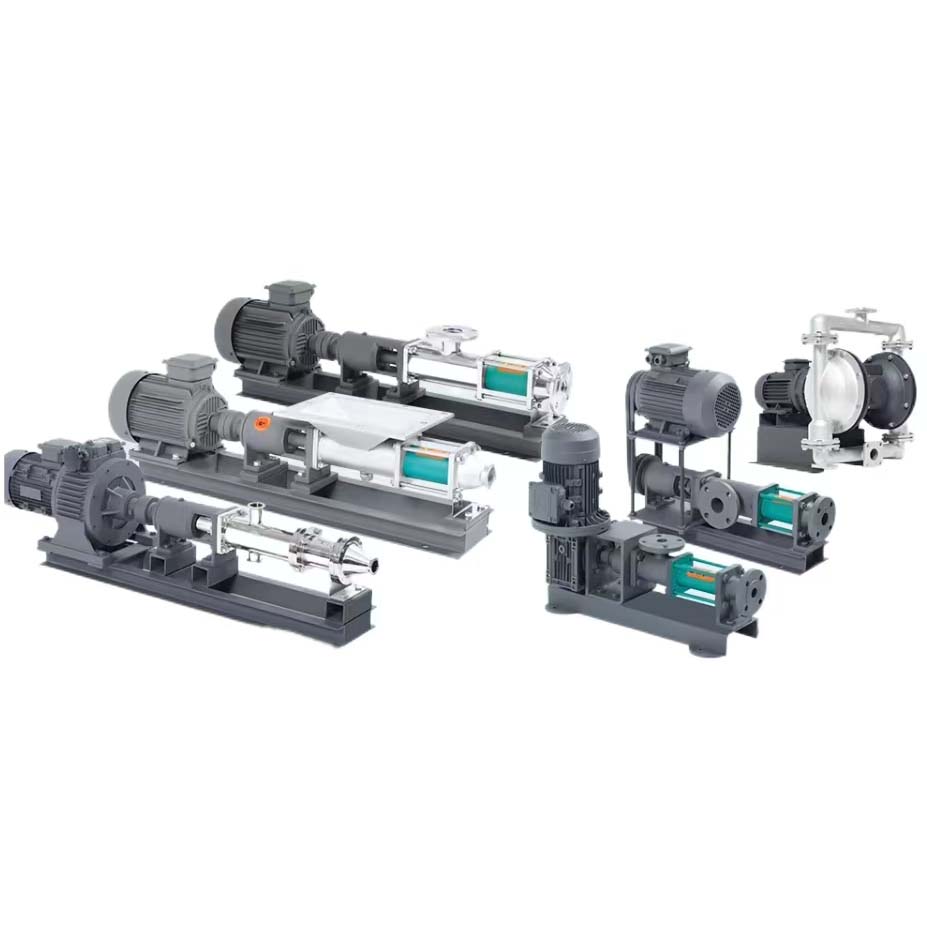

Product Display

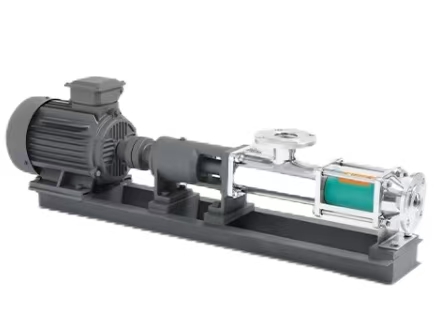

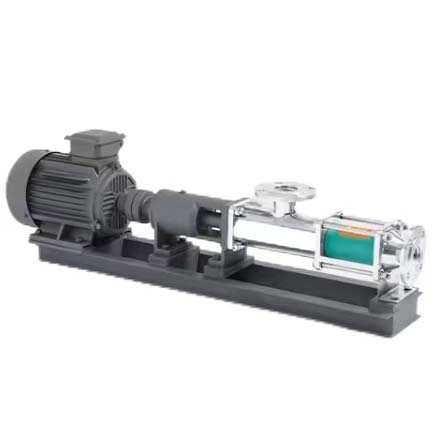

GTYPE SINGLE SCREW PUMP
Performance characteristics : motor and pump drive coupling link , compact structure , easy maintenance , high cost performance . Application range : sewage , food , environmental protection , chemical industry in all kinds of low and high viscosity with or without particles as of transport .

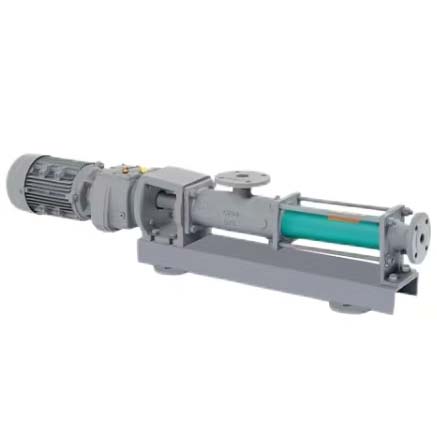

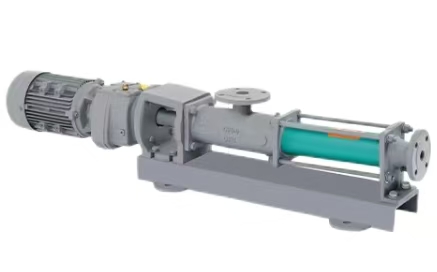

WG TYPE HIGH PERFORMANCE STRAIGHTCHAINTYPESCREWPUMP
Performance characteristics : motor reducer directly linked to the pump drive shaft , advanced structure , long machine life , low speed ,long life of wearing parts .Application scope : sewage , food , environmental protection , chemical industry in all kinds of low and high viscosity with or thout particles as of transport .

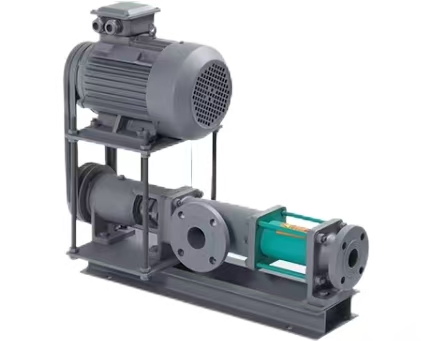

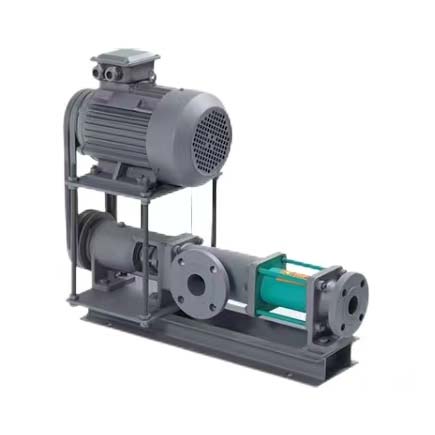

BACKPACK SERIES SCREW PUMPS
Performance characteristics : Motor is linked by pulley structure , up and down position placement , high space utilization . Application scope : All kinds of low and high viscosity with or without particles in sewage , food , environmental protection , chemical industry as of conveying.

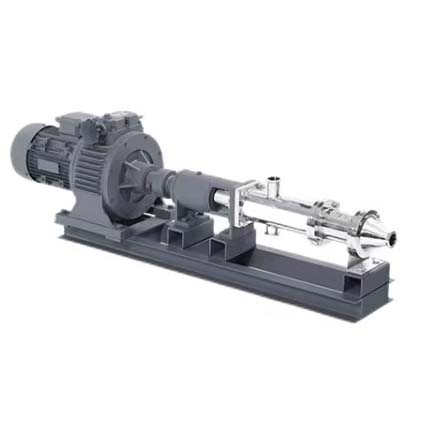

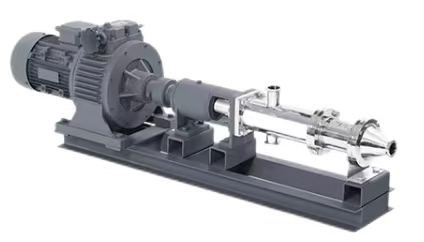

FOOD SANITATION PUMP WSJ SERIES
Performance characteristics : The overflow parts are food grade requirements , with quick linkage for easy disassembly and Application scope : All kinds of foodstuffs as well as chemical , lithium battery , pharmaceutical , daily chemical products and other media assembly , with flushing port .conveying with clean requirements .

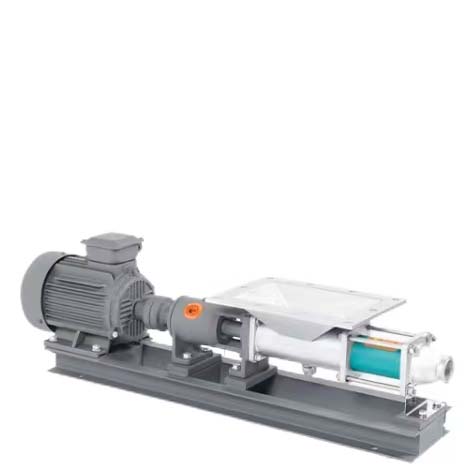

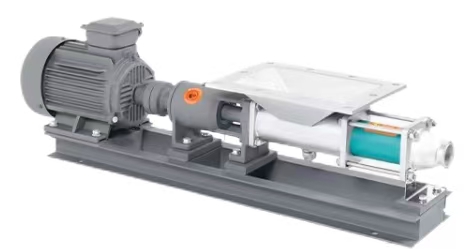

WGL HOPPER SCREW PUMP
Performance characteristics : The suction chamber can be customized with square mouth size , and the coupling with spiral vane propulsion device can effectively prevent the medium from being pushed in the pump inlet .Applications : Environmental protection , chemical industry , food , pharmaceuticals , sewage , sludge and other media with poor liquidity conveyance .

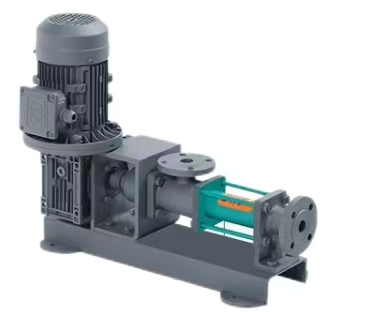

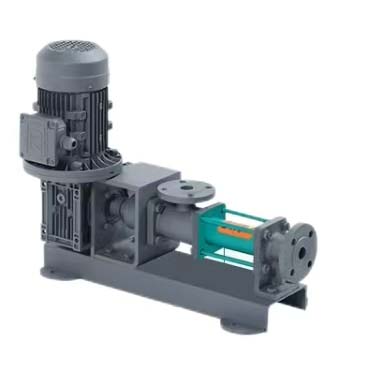

WWG TURBINE REDUCER SERIES SCREW PUMP
Performance characteristics : Supporting high - quality turbo reducer deceleration , novel structure to reduce the length of the occupation ,smooth operation .Application scope : All kinds of low and high viscosity with or without particles in sewage , food , environmental protection , chemical industry as of conveying .

STEPLESS SPEED CONTROL SERIES SCREW PUMP
Performance characteristics : with stepless speed control motor , can adjust the motor speed through the hand wheel on the electrode , so as to control the flow size of the pump .
Application scope : sewage , food , environmental protection , chemical industry in all kinds of low and high viscosity with or without particles as of conveying .

Flow rate required according to the viscosity of the medium Select different types of motors
STANDARD MOTOR 1. 960 rpm fixed speed motor 2. 6 or 8 stages of motor 3. not inverter use	SPEED REDUCING MOTOR 1.Customizable speed 2. Can be carried out by frequency converter 3.Adjust Hertz and speed control at the same time
INFINITELY VARIABLE SPEED MOTOR 1. can be fixed speed adjustment 2. practical and low failure rate Ming 3. at any time to monitor the specific speed	INVERTER MOTOR 1. Low failure rate , high torque 2.High viscosity liquid needs reducer 3.Fixed speed

Flow rate required according to the viscosity of the medium Select different types of motors
Nitrile rubber Oil resistance is good , corrosion resistance is general , compatibility is strong , high abrasion of liquid fluid media .	Ternary ethylene propylene High temperature resistance , abrasion resistance , general corrosion resistance ,suitable for high temperature , high abrasion liquid fluid	Fluoroelastomer Good corrosion resistance , general abrasion resistance , suitable for acid and alkali chemical liquid fluid medium with general corrosion .	Silicone Strong isolation ,excellent corrosion resistance , food - grade sanitary grade , suitable for food and drug and laboratory industries

Company Profile

Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.

Heavy pump products in five series:	We can choose the pump material according to pump working condition.
1)Heavy horizontal slurry pump H series.	f)Packing seal: Mechanical seal or Gland seal.
2)Heavy vertical slurry pump SP ( semi-submersible pump)	e)Frame plate: casting.
3)Heavy dredge pump G series	Heavy pump products advantage:
4)Heavy gravel pump T series	1)Anti-abraisive metal.
5)Heavy submersible pump	2)Module design which makes the spareparts can be changed freely.
Heavy Slurry Pump Material:	3)Designed and built for long time with low maintenance.
a)Impeller: high-chromium alloy or rubber.	Heavy Pump Company to the Customers:
b)Volute liner: high-chromium alloy.	1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it.
c)Shaft: 45# steel.	2)Fast delivery at your requirement.
d)Shaft sleeve: ductile casting.

Enterprise production certificate


Business license
Customs Union EAC
Certification CE certification
ISO 9001 certificate

Customer Visit Photos


Visit and purchase products from South African customers
Visit and purchase products from Korean customers
From Russian customers for inspection and procurement of products
Visit and purchase products from Malaysia customers

Packaging Transport Photos

Heavy pump with the unremitting pursuit of high quality and high performance and unlimited enthusiasm to innovate new products, with superb technology, strict quality control and excellent service, have won the favor of customers all over the world.
Heavy pump have been successfully exported to more than 100 countries around the world, so that the world has witnessed the charm of Made in China.

FAQ

Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal.
Q: Which shipping terms are available?
A: By sea, air, Express.
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What's your warranties?
A: 1 year after delivery.
Q: Can I buy parts separately?
A: Yes, all of the pump spare parts can buy separately.
