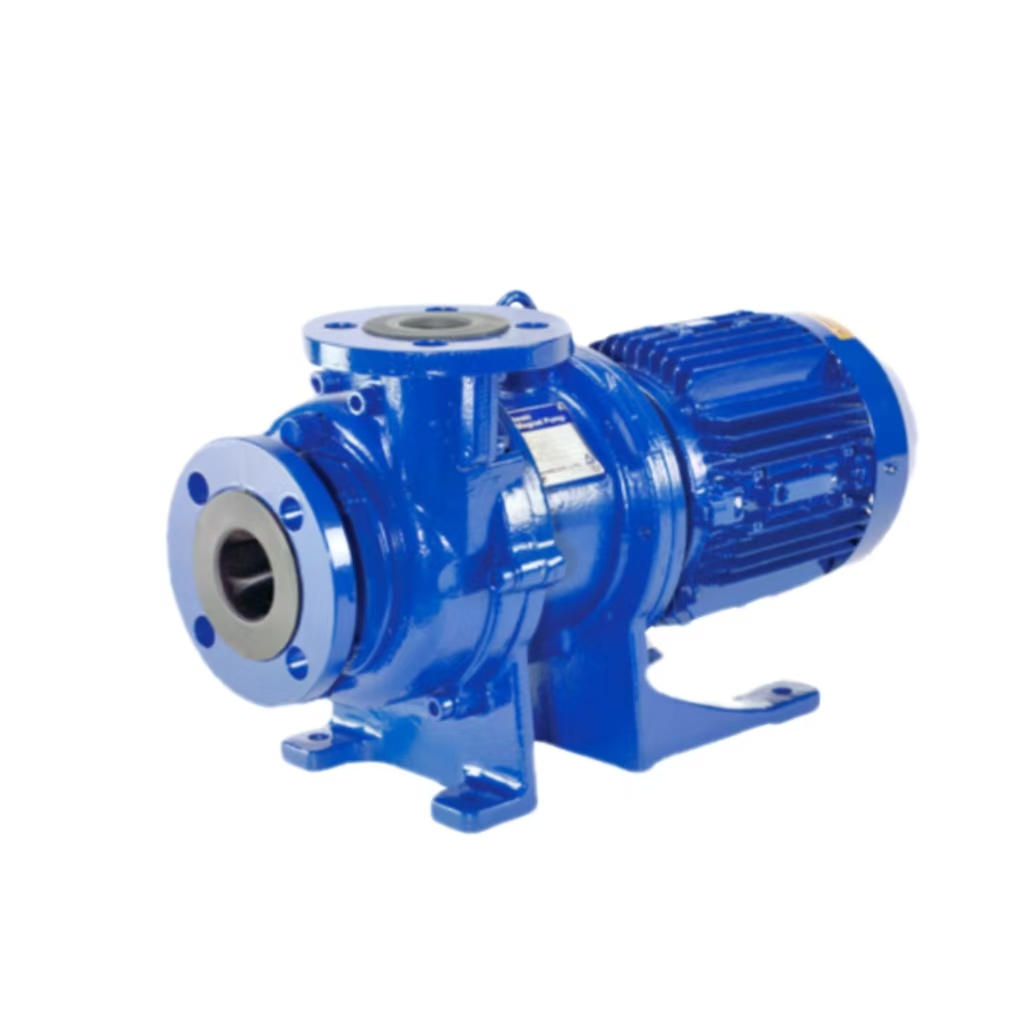

CQB65 Magnetic drive pump
Shijiazhuang Heavy Pump Company Limited 1
Summary Description
1)Capacity: 1000 L/min
2)Head: 38—51 m
3)Allowable mating Mac power: 15 kw
$14200.00
PRODUCT DETAILS
Key attributes
 |
Magnetic pump also known as magnetic drive pump, is a permanent magnet coupler contactless torque transmission theory produced mechanical pump.
|
Industry - specific attributes
| Application | Widely used in petroleum, chemical, pharmaceutical, electronics, environmental protection, food processing, electroplating, metal industry, mining, electrical appliances and other fields, for the transport of various liquid media. |
| Pressure | High Pressure |
| Voltage |
380 |
Other attributes
| Customized support | OEM , ODM |
| Place of Origin | Hebei, China |
| Power Source | Electric |
| Structure | Magnetic drive pump |
| Warranty | 1 year |
| Brand Name | heavy pump |
| Model Number | MDW,MDE,MXM |
| Outlet Size | 25-65mm |
| Power | 1.5-18.5KW |
Lead time
| Quantity ( sets ) | 1-1 | 2-10 | >10 |
| Lead time ( days ) | 10 | 20 | To be negotiated |
Pump parameters
| Pump Model | Interface dimensions |
50Hz |
60Hz | Motor power (KW) |
|||||
| Suction port | Spit | Impeller diameter |
flow |
lift |
Impeller diameter |
flow |
lift |
||
| CQB25-1 | 40 | 25 | 165 | 100 | 35.5 | 140 | 100 | 36.0 | 2.2 |
| CQB25-2 | 40 | 25 | 195 | 100 | 50.5 | 170 | 100 | 53.0 | 7.5 |
| CQB25-3 | 40 | 25 | 225 | 100 | 74.0 | 225 | 100 | 107.0 | 15 |
| CQB40-1 | 50 | 40 | 165 | 208 | 35.0 | 145 | 250 | 38.0 | 7.5 |
| CQB40-2 | 50 | 40 | 225 | 208 | 70.0 | 225 | 250 | 102.0 | 15 |
| CQB50-1 | 65 | 50 | 165 | 417 | 33.0 | 160 | 500 | 44.5 | 7.5 |
| CQB65-1 | 80 | 65 | 165 | 833 | 38.0 | 160 | 1000 | 51.0 | 15 |
 Shijiazhuang Heavy Pump Company Limited |
||
| Customized logo | Customized packaging | Graphic customization |
| Min. order: 5 set | Min. order: 5 set | Min. order: 5 set |
Company Profile
Shijiazhuang Heavy Pump Company Limited is changed by Hebei Xinda Slurry Company. We continue the fine tradition of producing slurry pumps-be famouse for its quality and service.
All products are mainly supplied to mining, metallurgy, public works, coal, petroleum, chemical, building material and other national economic deparments. The products are sold well all China and far to more than 40 countries in the world.
| Heavy pump products in five series: | We can choose the pump material according to pump working condition. |
| 1)Heavy horizontal slurry pump H series. | f)Packing seal: Mechanical seal or Gland seal. |
| 2)Heavy vertical slurry pump SP ( semi-submersible pump) | e)Frame plate: casting. |
| 3)Heavy dredge pump G series | Heavy pump products advantage: |
| 4)Heavy gravel pump T series | 1)Anti-abraisive metal. |
| 5)Heavy submersible pump | 2)Module design which makes the spareparts can be changed freely. |
| Heavy Slurry Pump Material: | 3)Designed and built for long time with low maintenance. |
| a)Impeller: high-chromium alloy or rubber. | Heavy Pump Company to the Customers: |
| b)Volute liner: high-chromium alloy. | 1)Quality first. We guranteed every spareparts of the pump must be inspected closedly and will have our inspectors names on it. |
| c)Shaft: 45# steel. | 2)Fast delivery at your requirement. |
| d)Shaft sleeve: ductile casting. |
Enterprise production certificate
| Business license Customs Union EAC Certification CE certification ISO 9001 certificate |
Customer Visit Photos
| Visit and purchase products from South African customers Visit and purchase products from Korean customers From Russian customers for inspection and procurement of products Visit and purchase products from Malaysia customers |
Packaging Transport Photos
| Heavy pump with the unremitting pursuit of high quality and high performance and unlimited enthusiasm to innovate new products, with superb technology, strict quality control and excellent service, have won the favor of customers all over the world. Heavy pump have been successfully exported to more than 100 countries around the world, so that the world has witnessed the charm of Made in China. |
FAQ
| Q: How can I make order online? A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order. Q: Do you have MOQ limit? A: The MOQ is 1 set. Q: Which payments are acceptable? A: T/T, L/C, Western Union, Paypal. Q: Which shipping terms are available? A: By sea, air, Express. Q: How about the delivery time? A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity. Q: What's your warranties? A: 1 year after delivery. Q: Can I buy parts separately? A: Yes, all of the pump spare parts can buy separately. |
